SKU: 120-3-SD-NO11-RENOLD
Renold SD 120-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold SD 120-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
$94.46
ex VAT
Regular price
Sale price
$94.46
ex VAT
In stock
Price Break
10+
$84.07
19+
$79.35
29+
$78.40
39+
$77.46
49+
$76.51
74+
$75.57
99+
$70.85
199+
$69.90
249+
$68.96
499+
$68.01
999+
$66.12
Couldn't load pickup availability
Description
Description

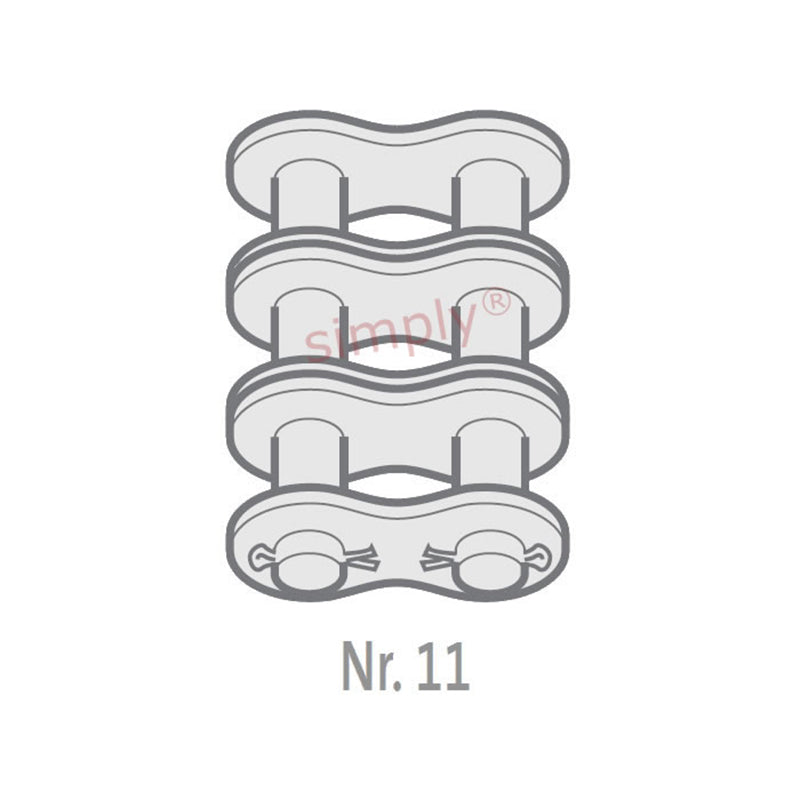

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H1) | 139.55mm |
| Connecting Link Extension max (J) | 8.84999999999999mm |
| ISO606 Tensile Strength min | 375000 N |
| Weight | 45.44kg/m |
