SKU: 12B-3-SD-NO26-RENOLD
Renold SD 12B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold SD 12B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
$9.10
ex VAT
Regular price
Sale price
$9.10
ex VAT
In stock
Price Break
10+
$8.10
19+
$7.64
29+
$7.55
39+
$7.46
49+
$7.37
74+
$7.28
99+
$6.83
199+
$6.73
249+
$6.64
499+
$6.55
999+
$6.37
Couldn't load pickup availability
Description
Description

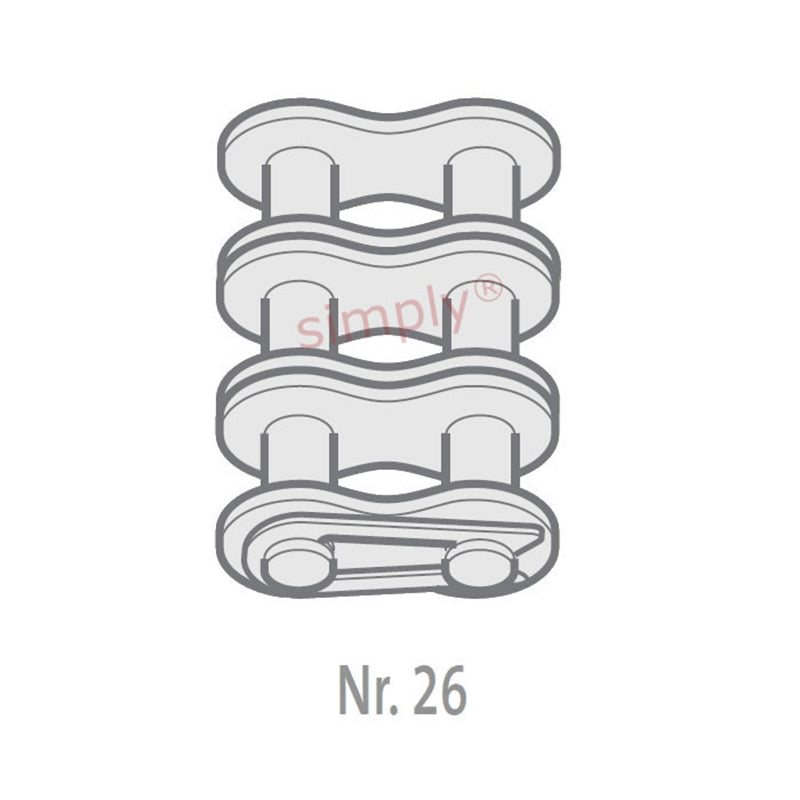

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H1) | 61.5mm |
| Connecting Link Extension max (J) | 4.5mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.023kg/m |
