SKU: 140-3-BB-NO12-RENOLD
Renold Blue Box 140-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Renold Blue Box 140-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Regular price
$532.44
ex VAT
Regular price
Sale price
$532.44
ex VAT
In stock
Price Break
10+
$473.87
19+
$447.25
29+
$441.93
39+
$436.60
49+
$431.28
74+
$425.95
99+
$399.33
199+
$394.01
249+
$388.68
499+
$383.36
999+
$372.71
Couldn't load pickup availability
Description
Description

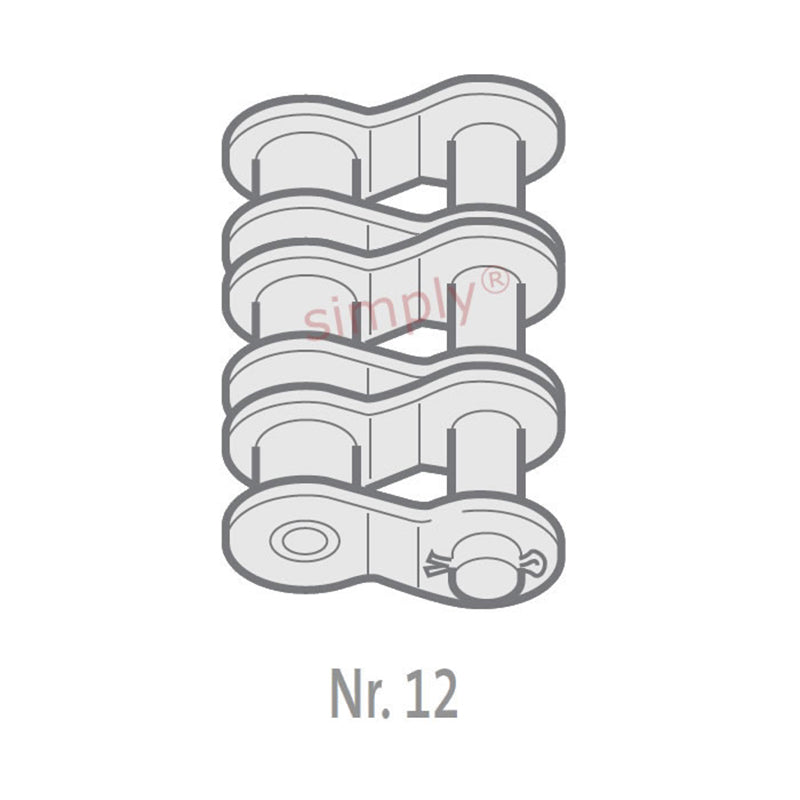

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42.23mm |
| Plate Width Inner max (E) | 5.61mm |
| Plate Width Outer max (F) | 5.61mm |
| Pin Diameter max (G) | 12.71mm |
| Pin Length max (H2) | 150.7mm |
| Connecting Link Extension max (J) | 5.2mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 510000 N |
| Weight | 1.167kg/m |
