SKU: 140-3-BB-NO58-RENOLD

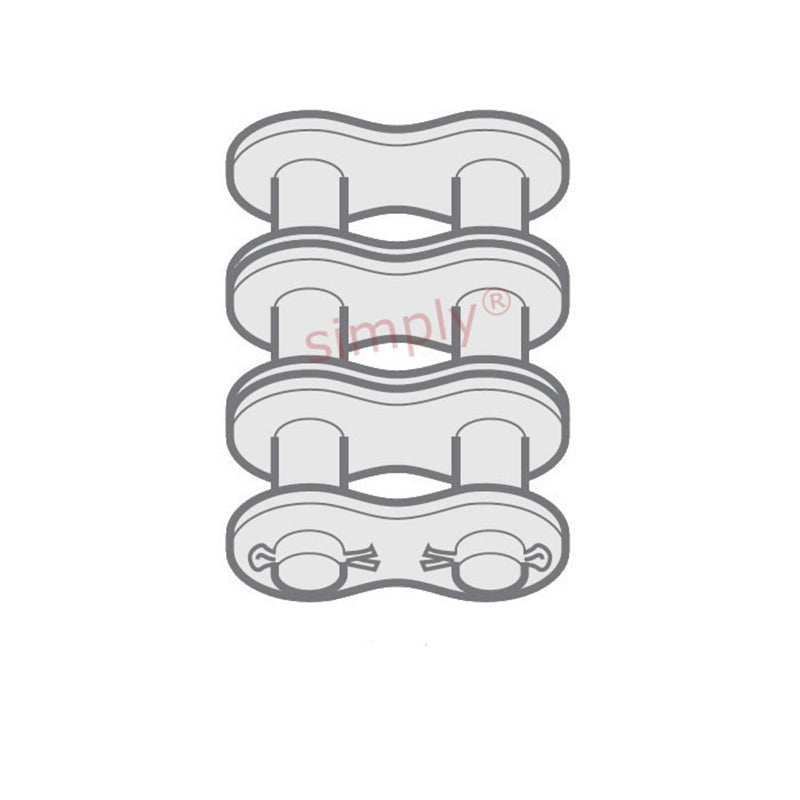

Renold Blue Box 140-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Renold Blue Box 140-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
$262.38
ex VAT
Regular price
Sale price
$262.38
ex VAT
In stock
Price Break
10+
$233.52
19+
$220.40
29+
$217.78
39+
$215.15
49+
$212.53
74+
$209.90
99+
$196.79
199+
$194.16
249+
$191.54
499+
$188.91
999+
$183.67
Couldn't load pickup availability
Description
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42.23mm |
| Plate Width Inner max (E) | 5.61mm |
| Plate Width Outer max (F) | 5.61mm |
| Pin Diameter max (G) | 12.71mm |
| Pin Length max (H2) | 150.7mm |
| Connecting Link Extension max (J) | 5.2mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 510000 N |
| Weight | 1.167kg/m |
