SKU: 16B-3-SYN-NO30-RENOLD
Renold Synergy 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
Renold Synergy 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
Regular price
$213.64
ex VAT
Regular price
Sale price
$213.64
ex VAT
In stock
Price Break
10+
$190.14
19+
$179.46
29+
$177.32
39+
$175.18
49+
$173.05
74+
$170.91
99+
$160.23
199+
$158.09
249+
$155.96
499+
$153.82
999+
$149.55
Couldn't load pickup availability
Description
Description

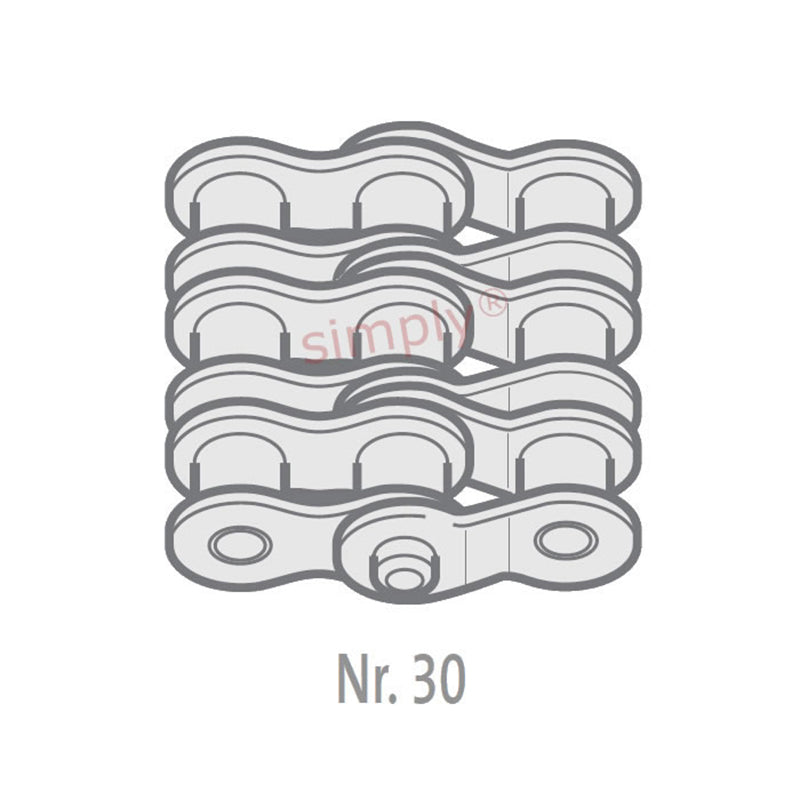

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H2) | 98.6mm |
| Connecting Link Extension max (J) | 2.2mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 160000 N |
| Weight | 0.046kg/m |
