SKU: 1726203.2RS1.MB

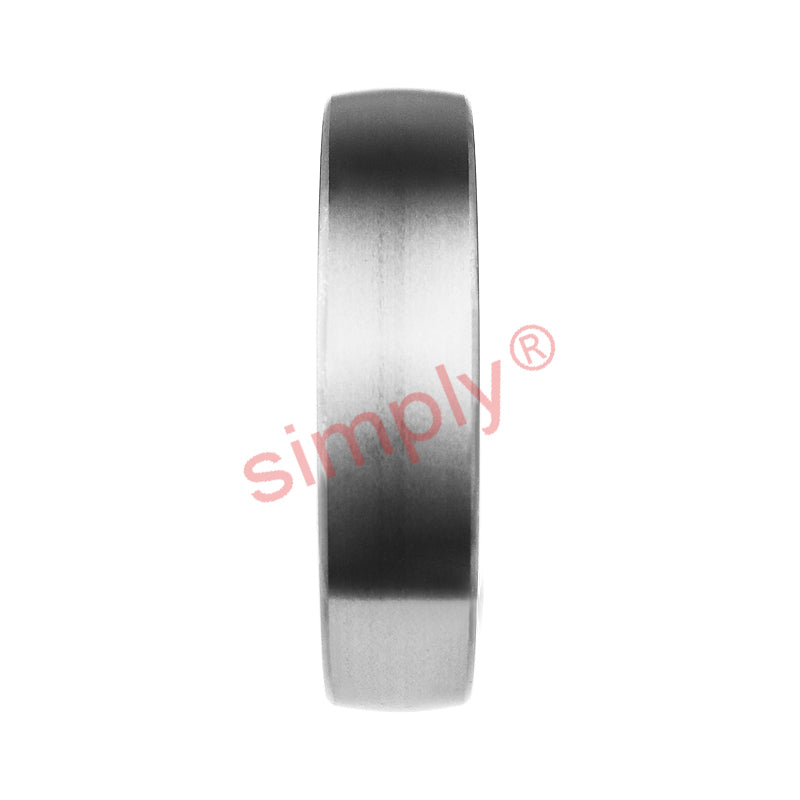

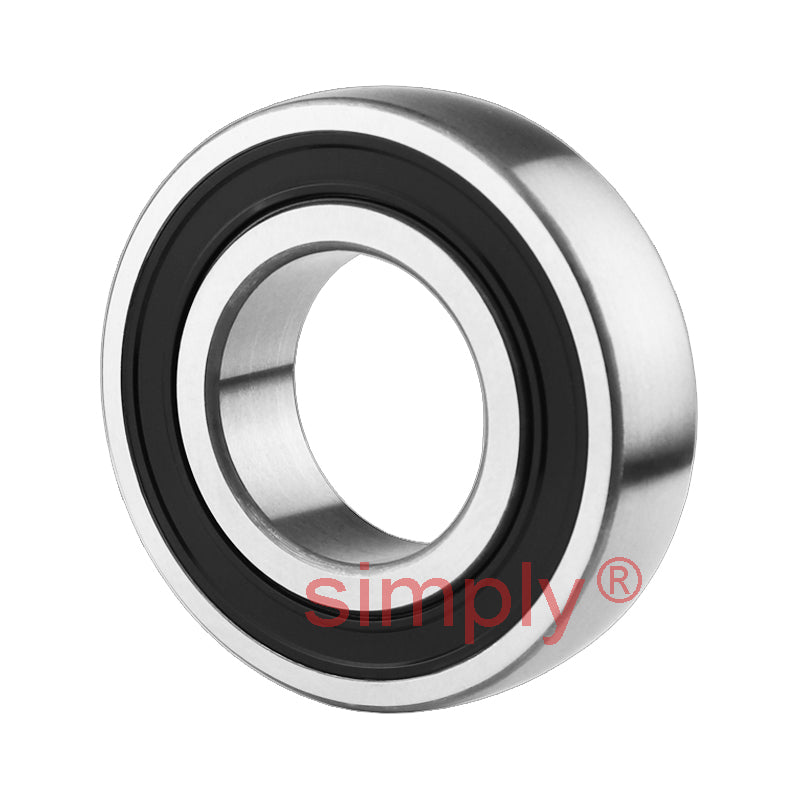

Major Brand 17262032RS1 Spherical Outside Dia Deep Groove Ball Bearing 17x40x12mm
Major Brand 17262032RS1 Spherical Outside Dia Deep Groove Ball Bearing 17x40x12mm
Regular price
$13.70
ex VAT
Regular price
Sale price
$13.70
ex VAT
Equivalent to: 203NPPB 203NPPU CS203 1726203-2RS1 CB203
In stock
Price Break
10+
$12.19
19+
$11.51
29+
$11.37
39+
$11.23
49+
$11.10
74+
$10.96
99+
$10.28
199+
$10.14
249+
$10.00
499+
$9.86
999+
$9.59
Couldn't load pickup availability
Description
Description
|
172 Series Rubber Sealed Deep Groove Ball Bearings with Spherical Outer Race: Commonly used in conjunction with pressed steel bearing housings or cast iron types these rubber sealed bearings are characterized by their spherical outside diameter. |
Equivalent: 203NPPB 203NPPU CS203 1726203-2RS1 CB203
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| d1 | 24.2mm |
| r1r2 | 0.6mm |
| Dynamic load Cr | 4.75 kN |
| Static load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Max speed | 12000 rpm |
| Weight | 0.056 kg |
