SKU: 202KRR3-MB

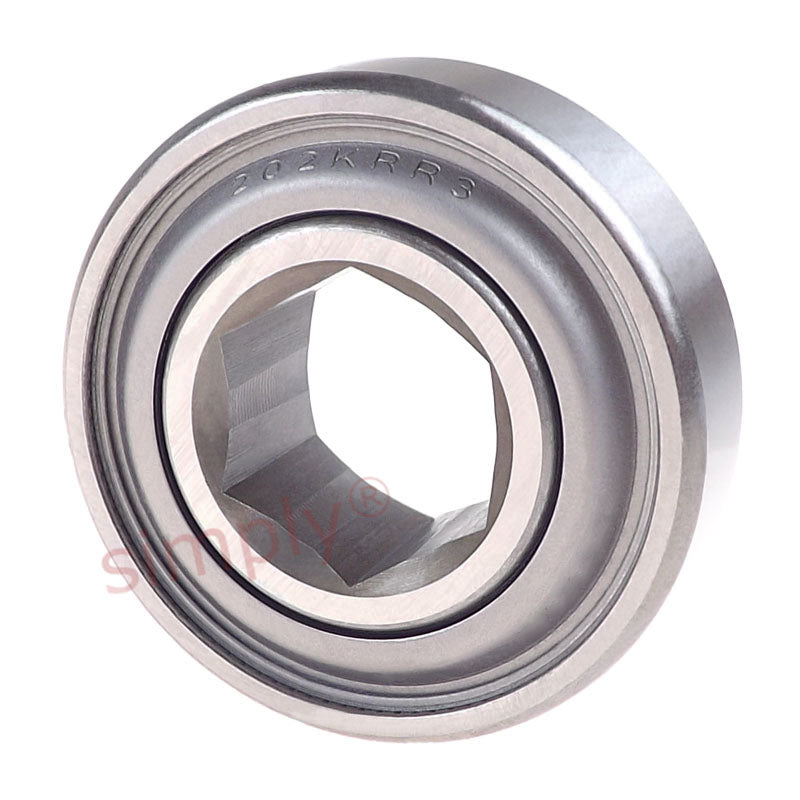

Major Brand 202KRR3 Soil Preparation/Harvesting Equipment Hex Bore Bearing 0.563x1.378x0.512 inch
Major Brand 202KRR3 Soil Preparation/Harvesting Equipment Hex Bore Bearing 0.563x1.378x0.512 inch
Regular price
$16.41
ex VAT
Regular price
Sale price
$16.41
ex VAT
In stock
Price Break
10+
$14.60
19+
$13.78
29+
$13.62
39+
$13.46
49+
$13.29
74+
$13.13
99+
$12.31
199+
$12.14
249+
$11.98
499+
$11.82
999+
$11.49
Couldn't load pickup availability
Description
Description
Seal Type: R, RST
Typical Application: Lawn and Garden Applications
Typical Environment: Less Contaminative Environment
Contamination Exclusion: Mild/Moderate
Speed Limit: Basic BRG. Size < 205: 3500 RPM, Basic BRG. Size > 205: 2000 RPM
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Outside Diameter:
- 35mm = 1.378 inch
- Width:
- 13mm = 0.512 inch
Technical
Technical
| d | 0.563 inch = 14.3002mm (Tolerance +.0000 to minus 0.005) |
|---|---|
| D | 1.378 inch = 35.0012mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 0.512 inch = 13.0048mm |
| Be | 0.433 inch = 10.9982mm |
| Be & Bi | (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | R Seal |
| Load Ratings Dynamic | 2160 lbf |
| Load Ratings Static | 1000 lbf |
