SKU: 204KPP2-MB

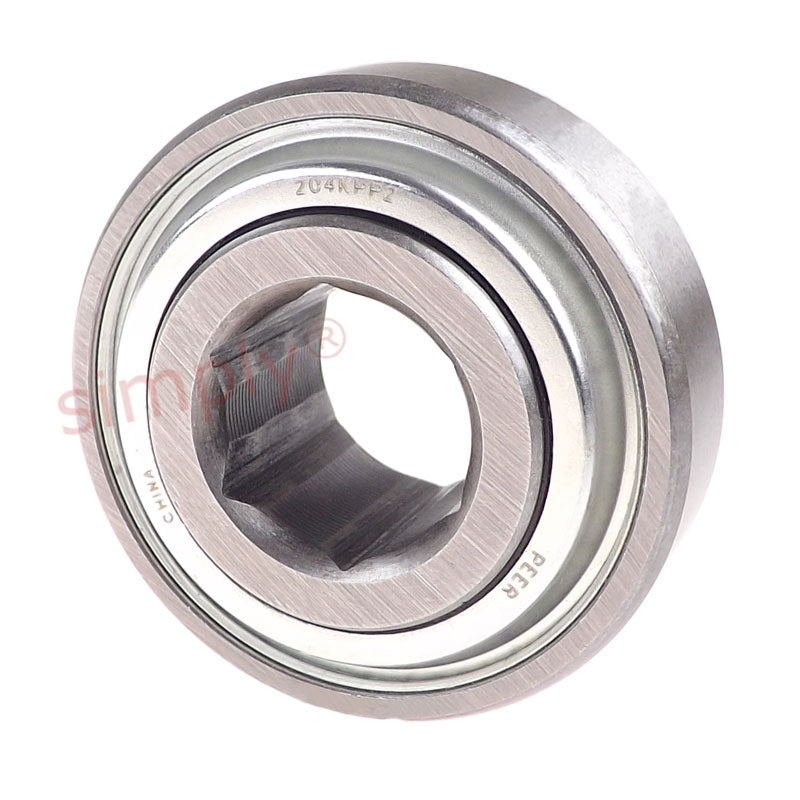

Major Brand 204KPP2 Seeder Hex Bore Bearing 0.695x1.8504x0.825 inch
Major Brand 204KPP2 Seeder Hex Bore Bearing 0.695x1.8504x0.825 inch
Regular price
$20.94
ex VAT
Regular price
Sale price
$20.94
ex VAT
Low stock
Price Break
10+
$18.64
19+
$17.59
29+
$17.38
39+
$17.17
49+
$16.96
74+
$16.75
99+
$15.71
199+
$15.50
249+
$15.29
499+
$15.08
999+
$14.66
Couldn't load pickup availability
Description
Description
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 17.65mm = 0.695 inch
- Outside Diameter:
- 47mm = 1.85 inch
- Width:
- 20.95mm = 0.825 inch
Technical
Technical
| d | 0.695 inch = 17.653mm (Tolerance +.0000 to minus 0.005) |
|---|---|
| D | 1.8504 inch = 47.00016mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 0.825 inch = 20.955mm |
| Be | 0.551 inch = 13.9954mm |
| Be & Bi | (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | P, TRL Seal |
| Load Ratings Dynamic | 2900 lbf |
| Load Ratings Static | 1000 lbf |
