SKU: 22/C-VM-VOLTA-RED

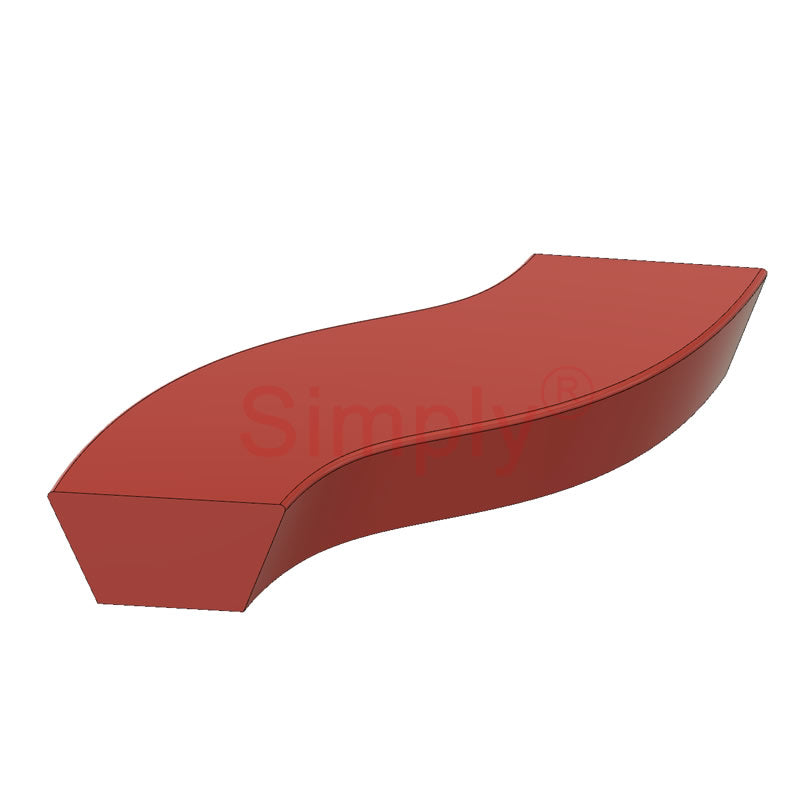

22/C VM Type V Volta Conveying Solutions Cord Belting - Per Metre
22/C VM Type V Volta Conveying Solutions Cord Belting - Per Metre
Regular price
$38.74
ex VAT
Regular price
Sale price
$38.74
ex VAT
In stock
Price Break
10+
$34.48
19+
$32.54
29+
$32.15
39+
$31.77
49+
$31.38
74+
$30.99
99+
$29.06
199+
$28.67
249+
$28.28
499+
$27.89
999+
$27.12
Couldn't load pickup availability
Description
Description
Volta VM Series V Section Conveyor Cord Belts: Volta red V section belts have a working temperature range of minus 30 deg C to a maximum of plus 60 degrees C, a hardness of 90A/40D and a coefficient of friction of 0.45 (against steel), they are USDA and FDA approved.

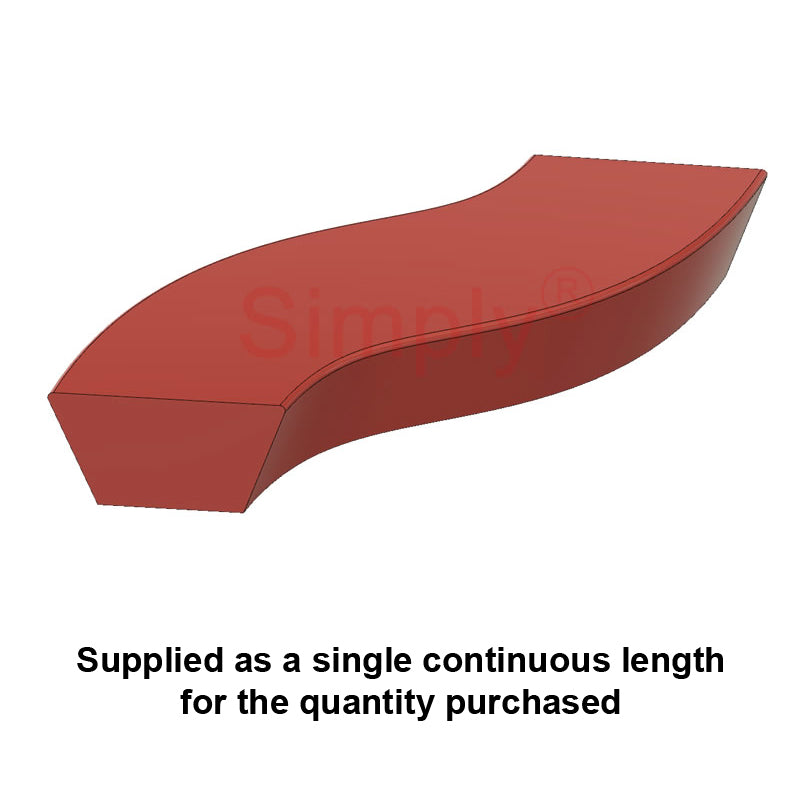

Supplied in open-ended lengths they are to be hot welded/joined together on site to the desired length using the specialised belt joining equipment available.
Volta Belting Technology Ltd has been a world leader in the manufacture of Thermoplastic Elastomer (TPE) belting and profiles for over 50 years. Colour May Vary
Supplied in open-ended lengths they are to be hot welded/joined together on site to the desired length using the specialised belt joining equipment available.
Volta Belting Technology Ltd has been a world leader in the manufacture of Thermoplastic Elastomer (TPE) belting and profiles for over 50 years. Colour May Vary
- Brand / Quality:
- Volta - High Quality
- Width:
- 22x14.5mm
- Profile:
- V-Profile
Technical
Technical
| Dimensions | 22x14.5mm |
|---|---|
| Shore Hardness | 90A/40D |
| Temp Range | -30 deg to +60 deg C |
| CoF Steel | 0.45 |
| Certification | Yes |
| Minimum pulley diameter | 145mm |
| Pull force at minimum pretention | 20kg |
| Maximum reel length | 30m |
