SKU: 24B-3-BB-NO12-RENOLD
Renold Blue Box 24B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Renold Blue Box 24B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
$289.07
ex VAT
Regular price
Sale price
$289.07
ex VAT
In stock
Price Break
10+
$257.27
19+
$242.82
29+
$239.93
39+
$237.04
49+
$234.15
74+
$231.26
99+
$216.80
199+
$213.91
249+
$211.02
499+
$208.13
999+
$202.35
Couldn't load pickup availability
Description
Description

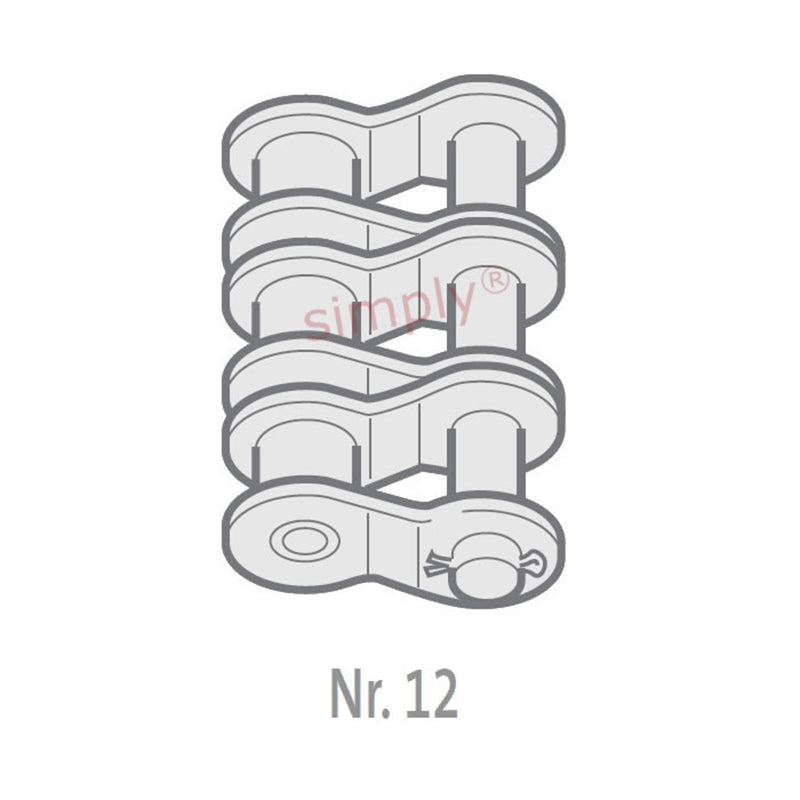

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.4mm |
| Plate Width Inner max (E) | 6.1mm |
| Plate Width Outer max (F) | 5.08mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H2) | 149.7mm |
| Connecting Link Extension max (J) | 6.8mm |
| Transverse Pitch nom (K) | 48.36mm |
| ISO606 Tensile Strength min | 425000 N |
| Weight | 0.19kg/m |
