SKU: 24B-3-SD-NO11-RENOLD
Renold SD 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold SD 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
$58.45
ex VAT
Regular price
Sale price
$58.45
ex VAT
In stock
Price Break
10+
$52.02
19+
$49.10
29+
$48.51
39+
$47.93
49+
$47.34
74+
$46.76
99+
$43.84
199+
$43.25
249+
$42.67
499+
$42.08
999+
$40.92
Couldn't load pickup availability
Description
Description

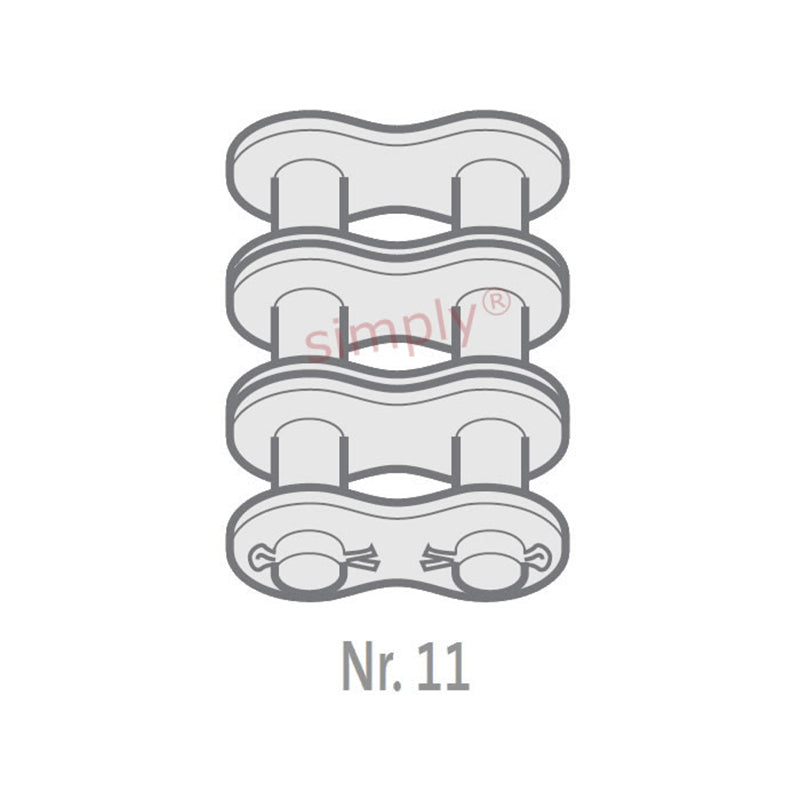

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.3mm |
| Plate Width Inner max (E) | 6mm |
| Plate Width Outer max (F) | 5.2mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H1) | 143.1mm |
| Connecting Link Extension max (J) | 12.6mm |
| ISO606 Tensile Strength min | 460000 N |
| Weight | 0.28kg/m |
