SKU: 29416E-SKF

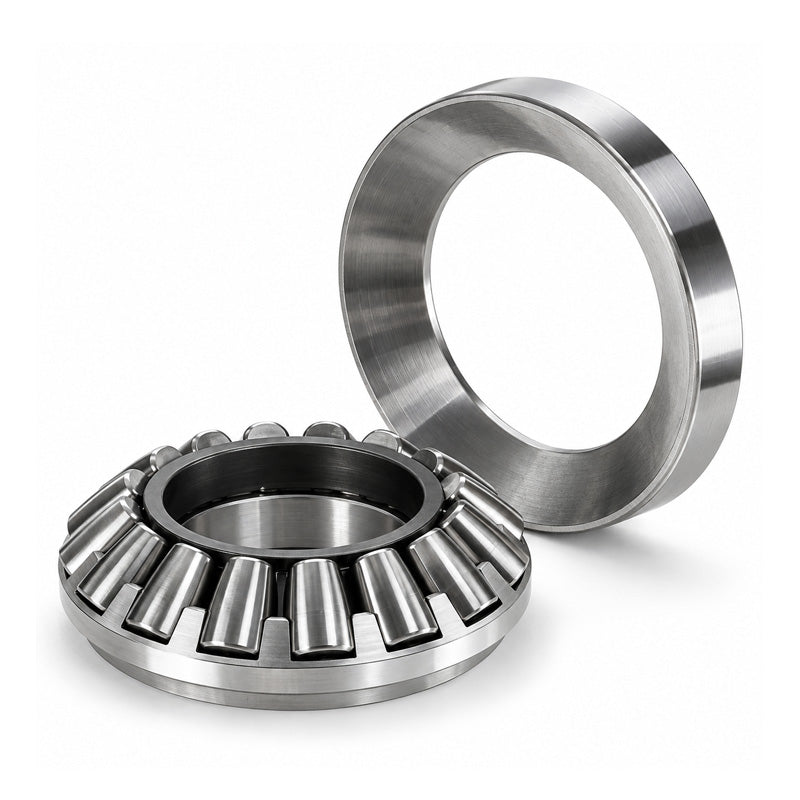

SKF 29416E Spherical Roller Thrust Bearing 80x170x54mm
SKF 29416E Spherical Roller Thrust Bearing 80x170x54mm
Regular price
$873.23
ex VAT
Regular price
Sale price
$873.23
ex VAT
In stock
Price Break
10+
$777.17
19+
$733.51
29+
$724.78
39+
$716.05
49+
$707.32
74+
$698.58
99+
$654.92
199+
$646.19
249+
$637.46
499+
$628.73
999+
$611.26
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 54mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| H | 54mm |
| Dynamic load C | 670 kN |
| Static load Co | 1630 kN |
| Fatigue load limit Pu | 193 kN |
| Minimum load factor A | 0.25 |
| Reference speed | 2200 rpm |
| Limiting speed | 3800 rpm |
| Weight | 5.6 kg |
| d1 | 147.2mm |
| D1 | 112.5mm |
| B | 35mm |
| B1 | 48.1mm |
| C | 26.5mm |
| s | 50mm |
| r1r2 min | 2.1mm |
| da min | 120mm |
| db1 max | 88mm |
| db2 max | 88mm |
| Da max | 141mm |
| ra max | 2mm |
