SKU: 29432E-SKF

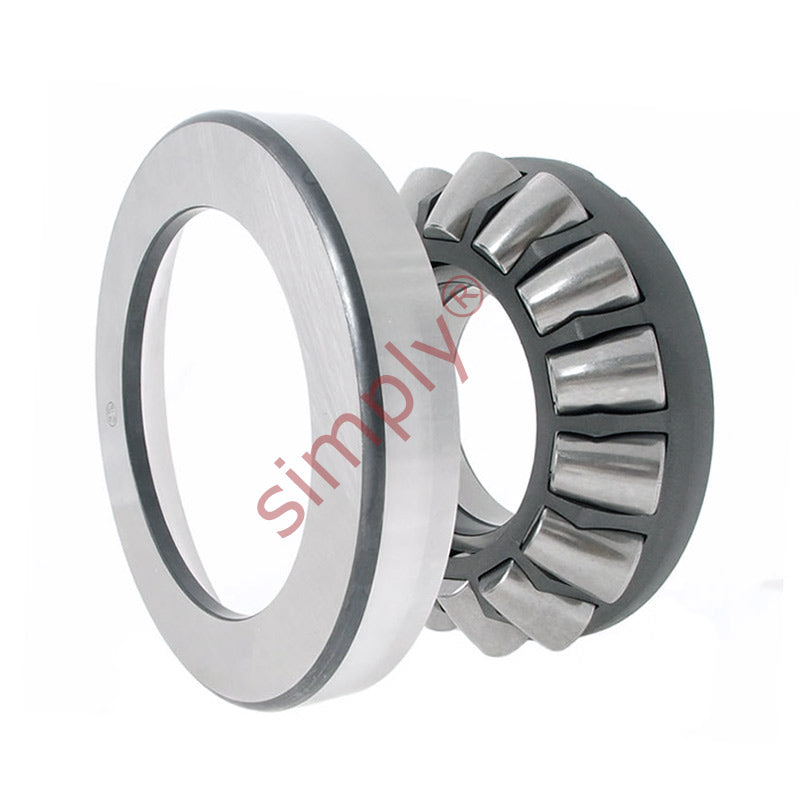

SKF 29432E Spherical Roller Thrust Bearing 160x320x95mm
SKF 29432E Spherical Roller Thrust Bearing 160x320x95mm
Regular price
$2,940.48
ex VAT
Regular price
Sale price
$2,940.48
ex VAT
In stock
Price Break
10+
$2,617.03
19+
$2,470.00
29+
$2,440.60
39+
$2,411.19
49+
$2,381.79
74+
$2,352.38
99+
$2,205.36
199+
$2,175.96
249+
$2,146.55
499+
$2,117.15
999+
$2,058.34
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 320mm
- Width:
- 95mm
Technical
Technical
| d | 160mm |
|---|---|
| D | 320mm |
| H | 95mm |
| Dynamic load C | 2080 kN |
| Static load Co | 5600 kN |
| Fatigue load limit Pu | 570 kN |
| Minimum load factor A | 3 |
| Reference speed | 1100 rpm |
| Limiting speed | 2000 rpm |
| Weight | 33.5 kg |
| d1 | 279.3mm |
| D1 | 223.5mm |
| B | 60.5mm |
| B1 | 84.3mm |
| C | 45.5mm |
| s | 99mm |
| r1r2 min | 5mm |
| da min | 235mm |
| db1 max | 175mm |
| db2 max | 189mm |
| Da max | 270mm |
| ra max | 4mm |
