SKU: 40B-2-NO11-DUN
Branded 40B-2-NO11 BS Duplex Chain Cottered Connecting Link 2-1/2 inch Pitch
Branded 40B-2-NO11 BS Duplex Chain Cottered Connecting Link 2-1/2 inch Pitch
Regular price
$82.99
ex VAT
Regular price
Sale price
$82.99
ex VAT
Equivalent to: 40B-2-CL-COT 40B-2-CL
In stock
Price Break
10+
$73.86
19+
$69.71
29+
$68.88
39+
$68.05
49+
$67.22
74+
$66.39
99+
$62.24
199+
$61.41
249+
$60.58
499+
$59.75
999+
$58.09
Couldn't load pickup availability
Description
Description

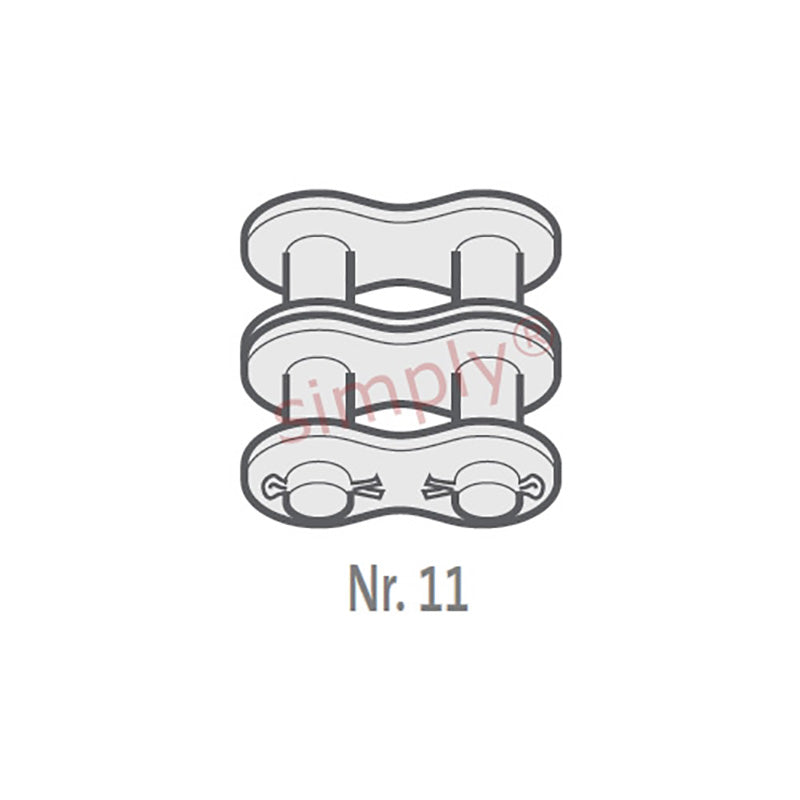

Dunlop COT / No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 40B-2-CL-COT 40B-2-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 63.5mm = 2.5 (2-1/2) inch
Technical
Technical
| Pitch (A) | 2.5 inch |
|---|---|
| Pitch (A) | 63.5mm |
| Inside Width min (B) | 39.3mm |
| Roller Diameter max (C) | 39.37mm |
| Plate Height max (D) | 52.96mm |
| Plate Width Inner max (E) | 8.13mm |
| Plate Width Outer max (F) | 8.13mm |
| Pin Diameter max (G) | 22.89mm |
| Pin Length max (H2) | 150.5mm |
| Connecting Link Extension max (J) | 9.5mm |
| Transverse Pitch nom (K) | 72.29mm |
| ISO606 Tensile Strength min | 630000 N |
| Weight | 2kg/m |
