SKU: 4SR16-IDLER

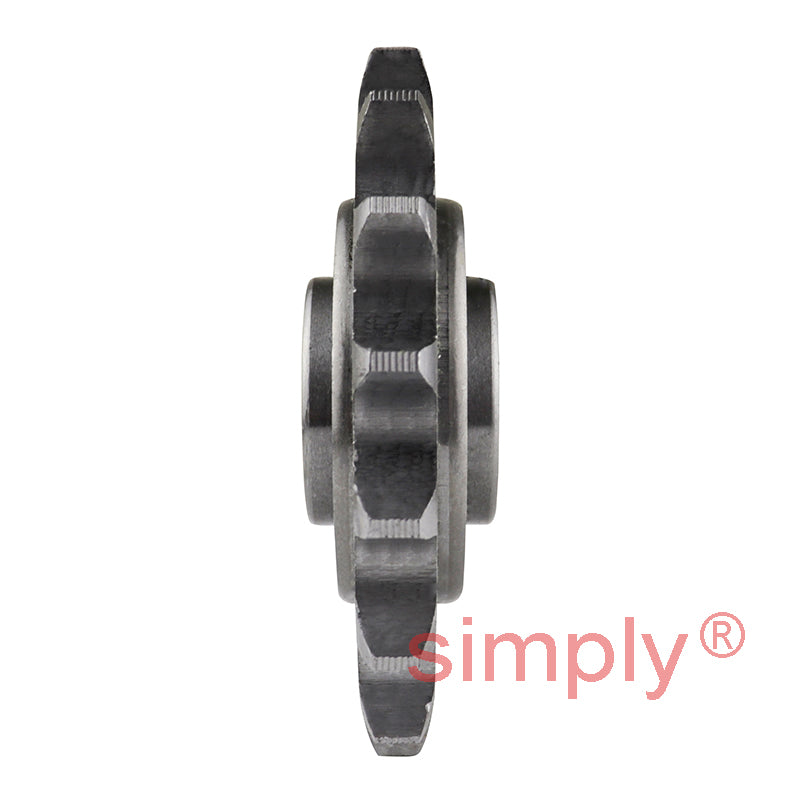

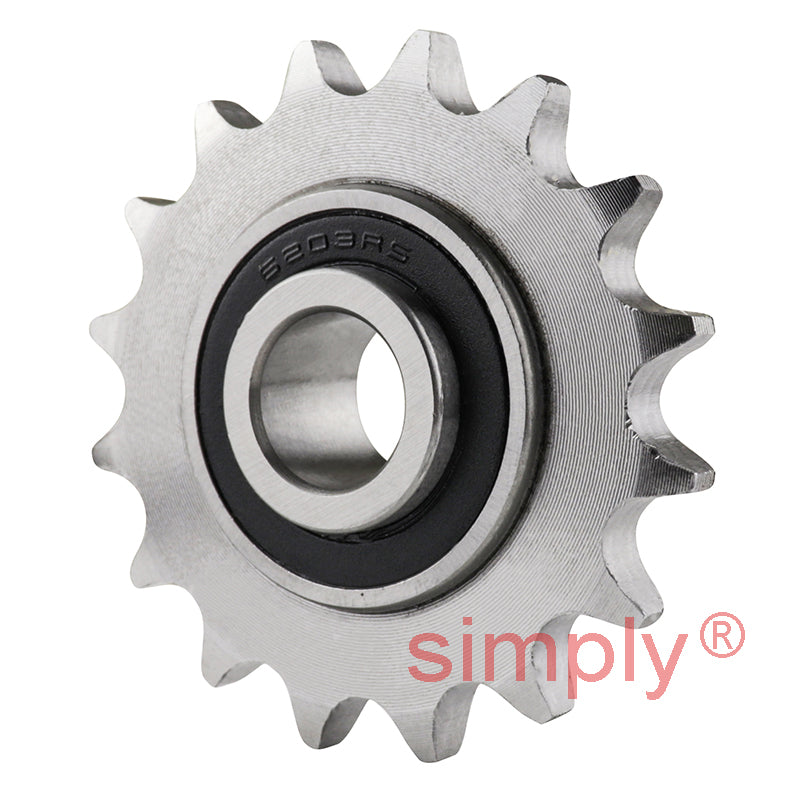

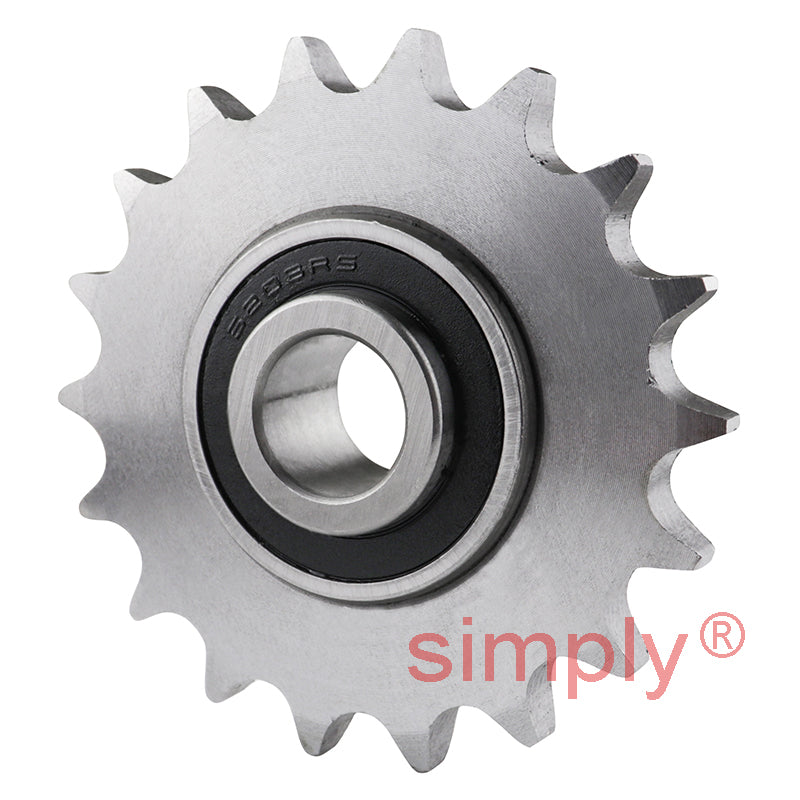

16 Tooth 08B Simplex Idler Sprocket for 1/2 Inch Pitch Chain
16 Tooth 08B Simplex Idler Sprocket for 1/2 Inch Pitch Chain
Regular price
$9.75
ex VAT
Regular price
Sale price
$9.75
ex VAT
In stock
Price Break
10+
$8.68
19+
$8.19
29+
$8.09
39+
$8.00
49+
$7.90
74+
$7.80
99+
$7.31
199+
$7.22
249+
$7.12
499+
$7.02
999+
$6.83
Couldn't load pickup availability
Description
Description
|
Idler Sprockets: Description
sprockets are manufactured to internationally recognised standards
DIN8187-ISOR 606 and are produced from C45 steel UNI EN 10083-1 having
a minimum strength of 600 Nmm 2. Conveniently stocked with an integral
ball bearing fitted (dimension ‘D’ for bore size)."
|
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 16
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| No of Teeth | 16 |
|---|---|
| Pitch Chain Diameter Dp | 65.1mm |
| Outer Diameter De | 69.5mm |
| Bore Diameter | 16.2mm |
| Tooth Width A | 7.2mm |
| Hub Diameter F | 40mm |
| H | 18.3mm |
| J | 12mm |
| Chain Type | 08B-1 |
| 12x516 inch | Weight |
| 0.18 kg | N/A |
