SKU: 50-2-SYN-NO30-RENOLD

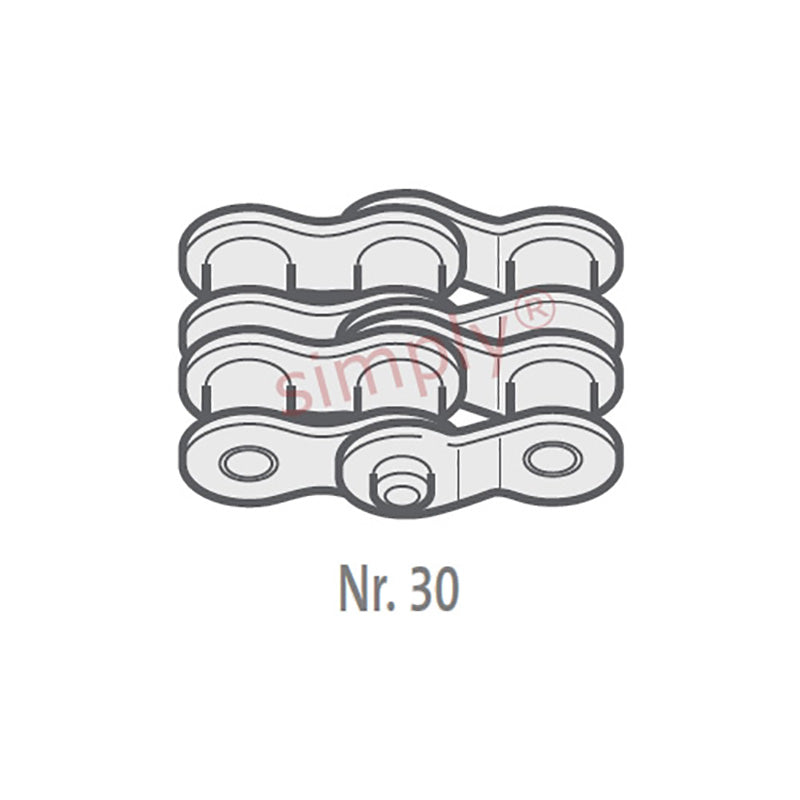

Renold Synergy 50-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 5/8 inch Pitch
Renold Synergy 50-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
$59.62
ex VAT
Regular price
Sale price
$59.62
ex VAT
In stock
Price Break
10+
$53.06
19+
$50.08
29+
$49.48
39+
$48.89
49+
$48.29
74+
$47.70
99+
$44.72
199+
$44.12
249+
$43.52
499+
$42.93
999+
$41.73
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 38.4mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 43600 N |
| Weight | 0.01kg/m |
