SKU: 5MM-RLC-VOLTA-CLEAR

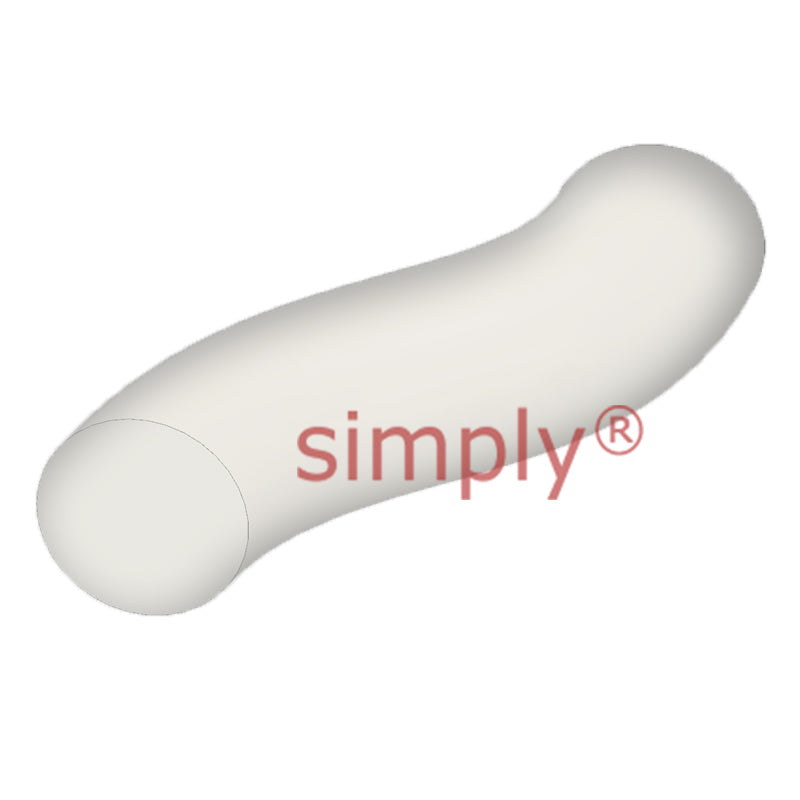

5mm RLC Type Round Volta Conveying Solutions Cord Belting - Per Metre
5mm RLC Type Round Volta Conveying Solutions Cord Belting - Per Metre
Regular price
$7.89
ex VAT
Regular price
Sale price
$7.89
ex VAT
In stock
Price Break
10+
$7.02
19+
$6.63
29+
$6.55
39+
$6.47
49+
$6.39
74+
$6.31
99+
$5.92
199+
$5.84
249+
$5.76
499+
$5.68
999+
$5.52
Couldn't load pickup availability
Description
Description
Volta RLC Series Clear Round Section Conveyor Cord Belts: Volta clear round section belts have a working temperature range of minus 40 deg C to a maximum of plus 55 degrees C, a hardness of 80A and a coefficient of friction of 0.55 (against steel), they are USDA and FDA approved.

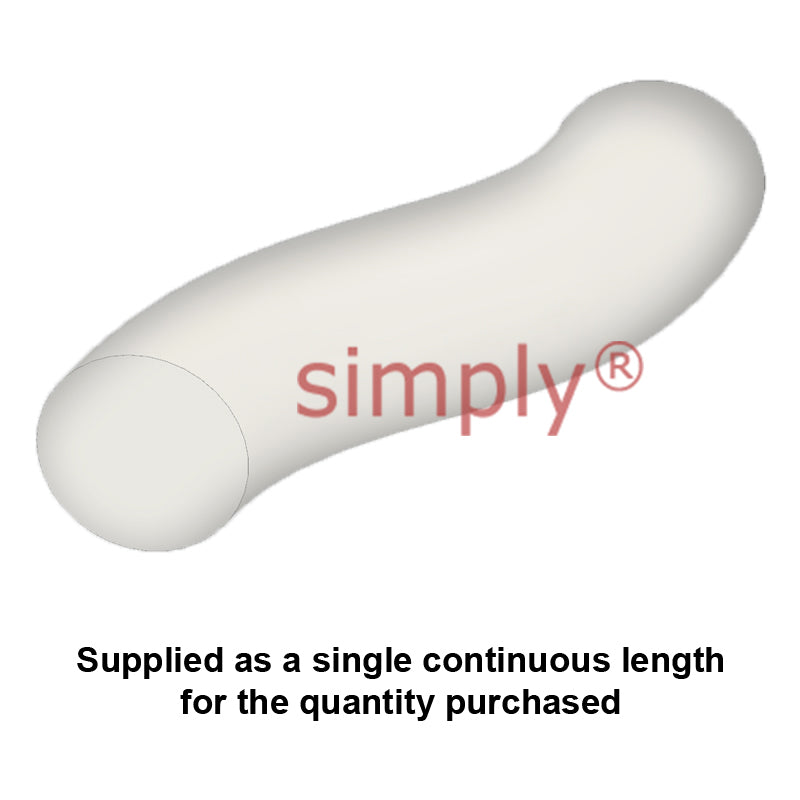

Supplied in open-ended lengths they are to be hot welded/joined together on site to the desired length using the specialised belt joining equipment available.
Volta Belting Technology Ltd has been a world leader in the manufacture of Thermoplastic Elastomer (TPE) belting and profiles for over 50 years.
Supplied in open-ended lengths they are to be hot welded/joined together on site to the desired length using the specialised belt joining equipment available.
Volta Belting Technology Ltd has been a world leader in the manufacture of Thermoplastic Elastomer (TPE) belting and profiles for over 50 years.
- Brand / Quality:
- Volta - High Quality
- Outside Diameter:
- 5mm
- Profile:
- Round
Technical
Technical
| Diameter | 5mm |
|---|---|
| Diameter Inch approx | 3/16 inch |
| Shore Hardness | 80A |
| Temp Range | -40 deg to +55 dec C |
| CoF Steel | 0.55 |
| Certification USDA/FDA | Yes |
| Minimum pulley diameter | 35mm |
| Pull force at minimum pretention | 0.40kg |
| Maximum reel length available | 30m |
