SKU: 60-3-BB-NO58-RENOLD

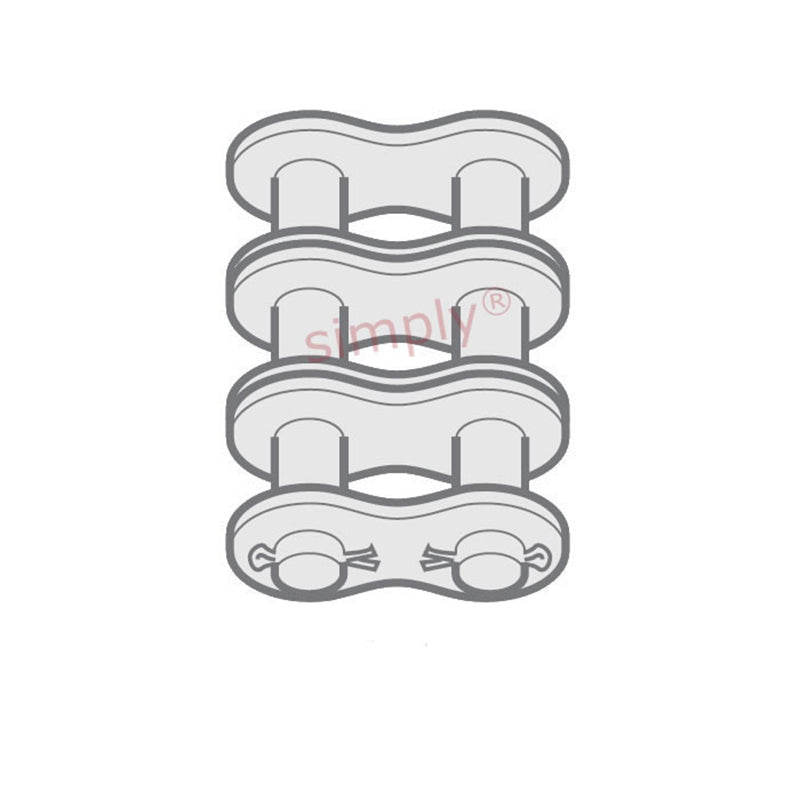

Renold Blue Box 60-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 3/4 inch Pitch
Renold Blue Box 60-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 3/4 inch Pitch
Regular price
$21.17
ex VAT
Regular price
Sale price
$21.17
ex VAT
In stock
Price Break
10+
$18.84
19+
$17.78
29+
$17.57
39+
$17.36
49+
$17.15
74+
$16.94
99+
$15.88
199+
$15.67
249+
$15.45
499+
$15.24
999+
$14.82
Couldn't load pickup availability
Description
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 70.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 1.51kg/m |
