SKU: 6009-2Z-KOY

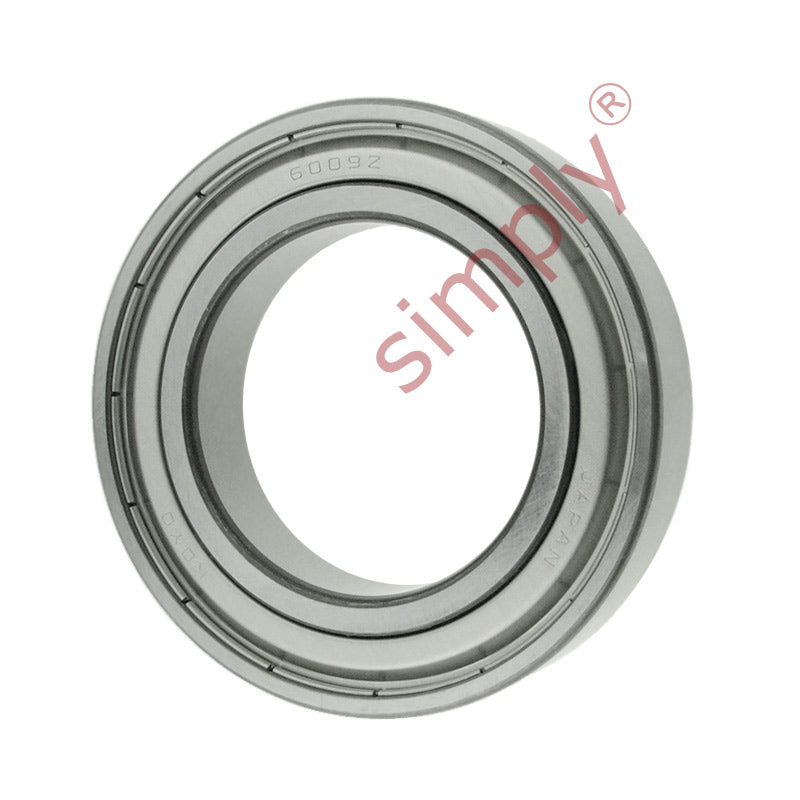

KOYO 60092Z Metal Shielded Deep Groove Ball Bearing 45x75x16mm
Equivalent to: 6009ZZE 60092Z 6009.2Z 6009KDD 6009DD 60092ZR 6009FF 6009Z
In stock
Price Break
Couldn't load pickup availability
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6009ZZE 60092Z 6009.2Z 6009KDD 6009DD 60092ZR 6009FF 6009Z
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 75mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 21 kN |
| Static load | 15.1 kN |
| Max speed in oil | 11000 rpm |
| Max speed in grease | 5300 rpm |
