SKU: 6211-2Z/VA228-SKF

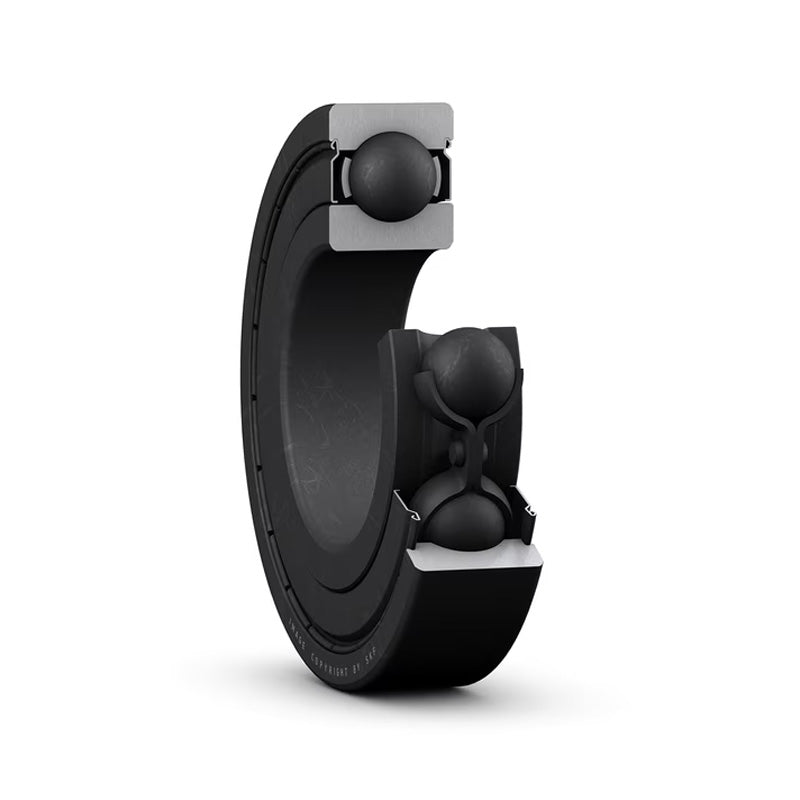

SKF 62112ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 55x100x21mm
SKF 62112ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 55x100x21mm
Regular price
$256.23
ex VAT
Regular price
Sale price
$256.23
ex VAT
In stock
Price Break
10+
$228.04
19+
$215.23
29+
$212.67
39+
$210.11
49+
$207.55
74+
$204.98
99+
$192.17
199+
$189.61
249+
$187.05
499+
$184.49
999+
$179.36
Couldn't load pickup availability
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| d1 | 69mm |
| D2 | 89.4mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 29 kN |
| Weight | 0.59 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
