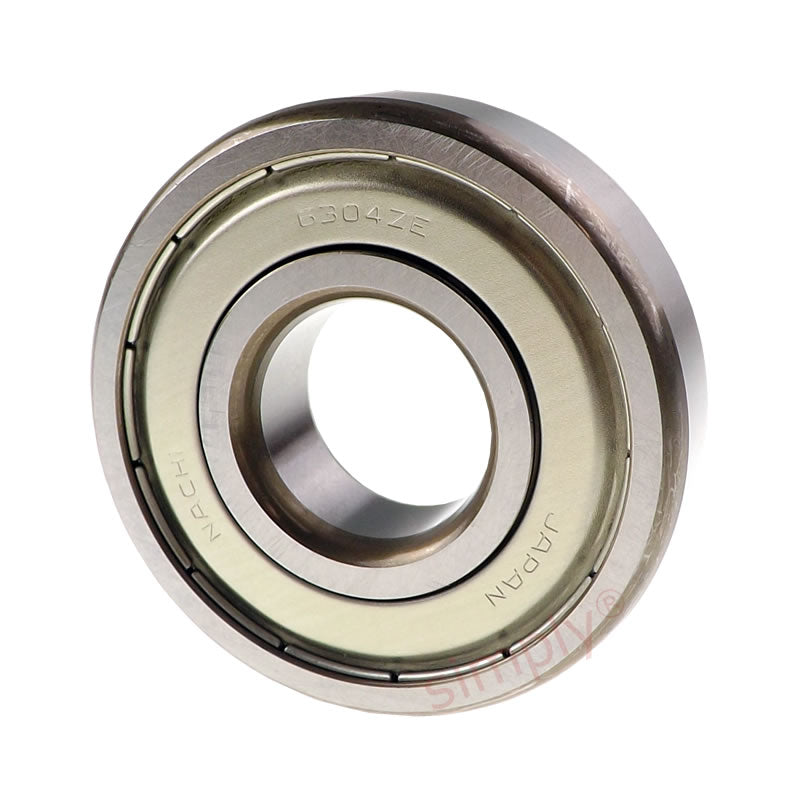

NACHI 6304ZZE Metal Shielded Deep Groove Ball Bearing 20x52x15mm
NACHI 6304ZZE Metal Shielded Deep Groove Ball Bearing 20x52x15mm
Regular price
$10.82
ex VAT
Regular price
Sale price
$10.82
ex VAT
Equivalent to: 6304ZZ 63042Z 6304.2Z 6304KDD 6304DD 63042ZR 6304FF
In stock
Price Break
10+
$9.63
19+
$9.09
29+
$8.98
39+
$8.87
49+
$8.76
74+
$8.66
99+
$8.12
199+
$8.01
249+
$7.90
499+
$7.79
999+
$7.57
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6304ZZ 63042Z 6304.2Z 6304KDD 6304DD 63042ZR 6304FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 52mm |
| Width B | 15mm |
| Min radius r | 1.1mm |
| Dynamic load | 15900 kN |
| Static load | 7900 kN |
| Max speed | 14000 rpm |
| da min | 27mm |
| Da max | 45mm |
| ra max | 1.1mm |
| Weight | 0.144 kg |
