SKU: 6306LLU/5K-NTN

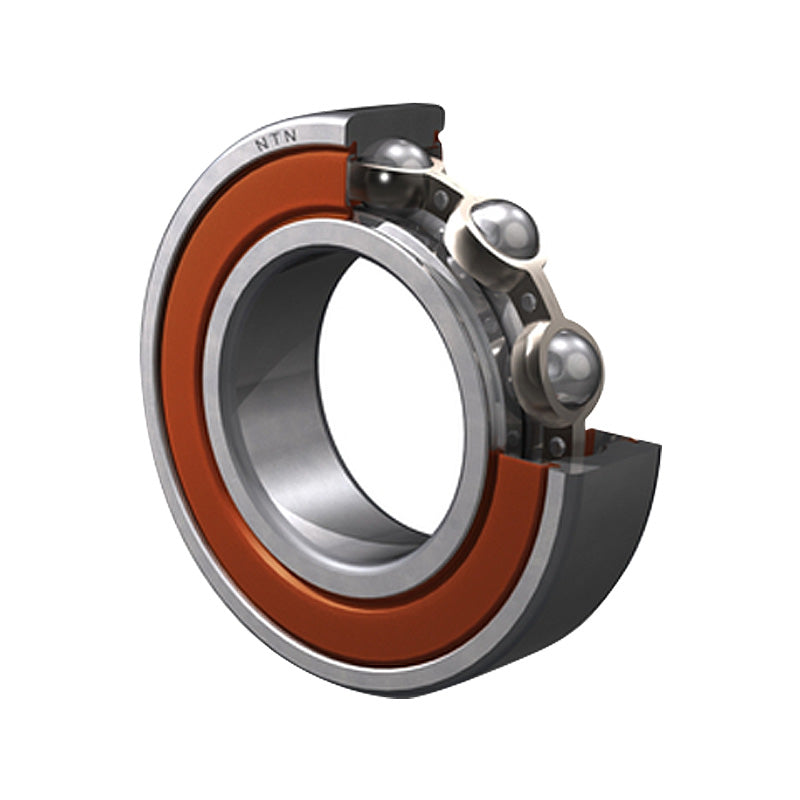

NTN 6306LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 30x72x19mm
Equivalent to: 6306LLUCM 6306NSE 6306DU 6306RS 6306RSH 6306P 6306RSR 6306LU 63062NSE 6306DDU 63062RS 6306-2RS 63062RS1 63062RSH 6306PP 63062RSR 6306LLU 6306RS2 63062RS2 63062RSL 6306LFS 6306EE 306P 306SZ Z9606 1306R
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6306LLUCM 6306NSE 6306DU 6306RS 6306RSH 6306P 6306RSR 6306LU 63062NSE 6306DDU 63062RS 6306-2RS 63062RS1 63062RSH 6306PP 63062RSR 6306LLU 6306RS2 63062RS2 63062RSL 6306LFS 6306EE 306P 306SZ Z9606 1306R
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 72mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 29.5 kN |
| C<sub>or</sub> | 15 kN |
| C<sub>u</sub> | 1.14 kN |
| f<sub>0</sub> | 13.3 kN |
| Speed | 6600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 36.5mm |
| d<sub>a</sub> Max. | 43mm |
| D<sub>a</sub> Max. | 65.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.36 kg |
