SKU: 7207BECBP-SKF

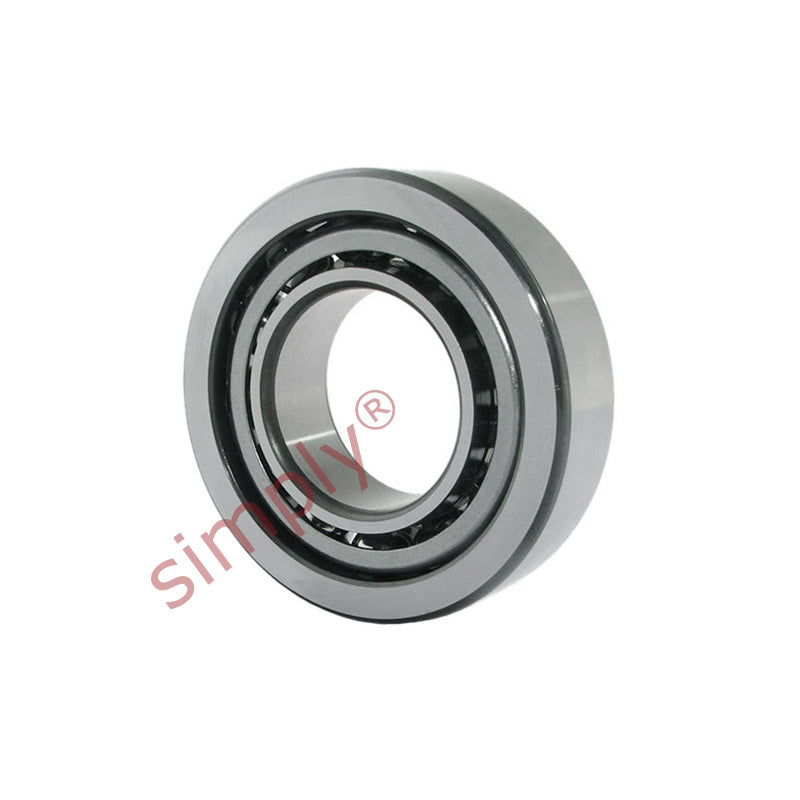

SKF 7207BECBP Single Row Angular Contact Ball Bearing 35x72x17mm
SKF 7207BECBP Single Row Angular Contact Ball Bearing 35x72x17mm
Regular price
$76.28
ex VAT
Regular price
Sale price
$76.28
ex VAT
Equivalent to: 7207BECBP
In stock
Price Break
10+
$67.89
19+
$64.08
29+
$63.31
39+
$62.55
49+
$61.79
74+
$61.02
99+
$57.21
199+
$56.45
249+
$55.68
499+
$54.92
999+
$53.40
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7207BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7207BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dynamic load Cr | 31 kN |
| Static load Cor | 20.8 kN |
| Fatigue load limit Pu | 0.88 kN |
| Reference speed | 12000 rpm |
| Limit speed | 12000 rpm |
| Weight | 0.28 kg |
| d1 | 49.7mm |
| d2 | 42mm |
| D1 | 58.3mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| a | 31mm |
| da min | 42mm |
| Da max | 65mm |
| Db max | 67.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
