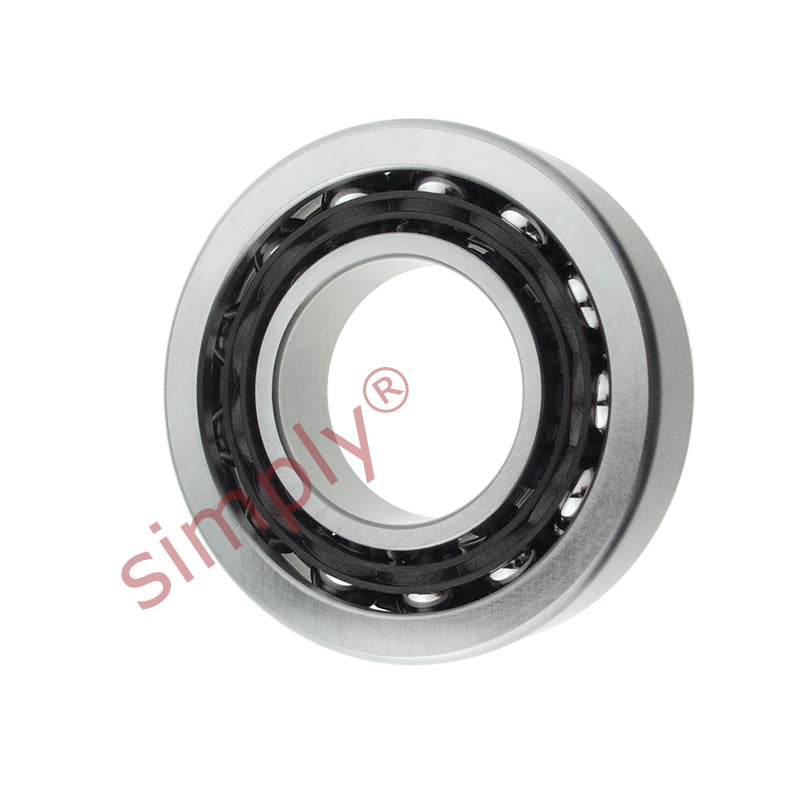

Budget 7311BTVPUO Open Single Row Angular Contact Ball Bearing 55x120x29mm
Budget 7311BTVPUO Open Single Row Angular Contact Ball Bearing 55x120x29mm
Regular price
$137.63
ex VAT
Regular price
Sale price
$137.63
ex VAT
In stock
Price Break
10+
$122.49
19+
$115.61
29+
$114.23
39+
$112.86
49+
$111.48
74+
$110.10
99+
$103.22
199+
$101.85
249+
$100.47
499+
$99.09
999+
$96.34
Couldn't load pickup availability
Description
Description
Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| r1r2 min | 2mm |
| r3r4 min | 1mm |
| Dynamic Load | 79.3 kN |
| Static Load | 55 kN |
| Weight | 1.34kg |
