SKU: AXK100135-EU

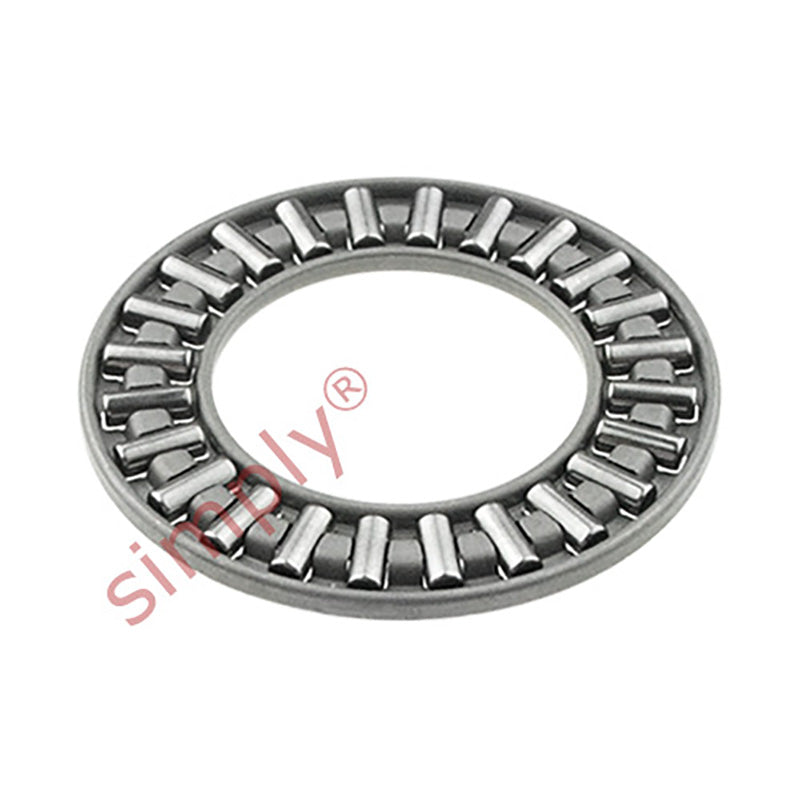

AXK100135 Budget Needle Roller Cage Only 100x135x4mm
AXK100135 Budget Needle Roller Cage Only 100x135x4mm
Regular price
$10.43
ex VAT
Regular price
Sale price
$10.43
ex VAT
In stock
Price Break
10+
$9.28
19+
$8.76
29+
$8.66
39+
$8.55
49+
$8.45
74+
$8.34
99+
$7.82
199+
$7.72
249+
$7.61
499+
$7.51
999+
$7.30
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 4mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 135mm |
| Dw | 4mm |
| Ea | 105mm |
| Eb | 133mm |
| Dynamic load C | 76500 N |
| Static load Co | 560000 N |
| Fatigue load limit Pu | 65500 N |
| Speed in grease | 850 rpm |
| Speed in oil | 1200 rpm |
| Weight (Assembly) | 105 g |
| d1 | 135mm |
| D | 135mm |
| D1 | 102mm |
| B | 7mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 350 g |
| Weight AS | 50 g |
| Raceway washer | LS100135 |
| Thrust washer | AS100135 |
| Shaft washer | WS81120 |
| Housing washer | GS81120 |
