SKU: BA.1710.ZOH

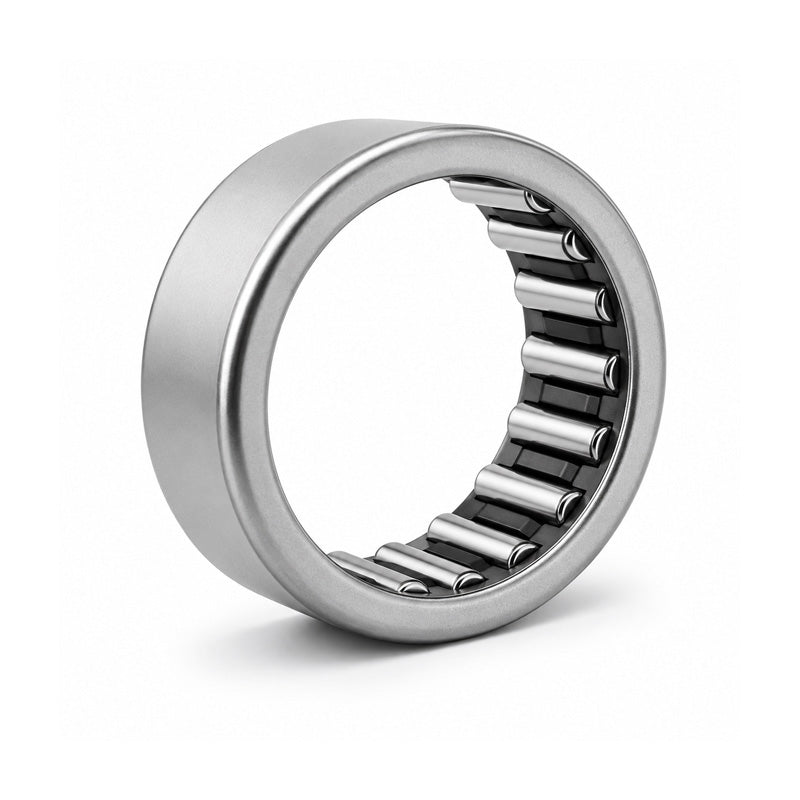

BA1710ZOH Imperial Needle Roller Bearing 1-1/16x1-5/16x5/8 inch
BA1710ZOH Imperial Needle Roller Bearing 1-1/16x1-5/16x5/8 inch
Regular price
$6.11
ex VAT
Regular price
Sale price
$6.11
ex VAT
In stock
Price Break
10+
$5.44
19+
$5.13
29+
$5.07
39+
$5.01
49+
$4.95
74+
$4.89
99+
$4.58
199+
$4.52
249+
$4.46
499+
$4.40
999+
$4.28
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Outside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 1-1/16 inch |
|---|---|
| D | 1-5/16 inch |
| C | 5/8 inch |
| Dynamic Load Cor | 11600 N |
| Static Load Cr | 19200 N |
| Weight | 0.0235 kg |
