SKU: BA.1916.ZOH

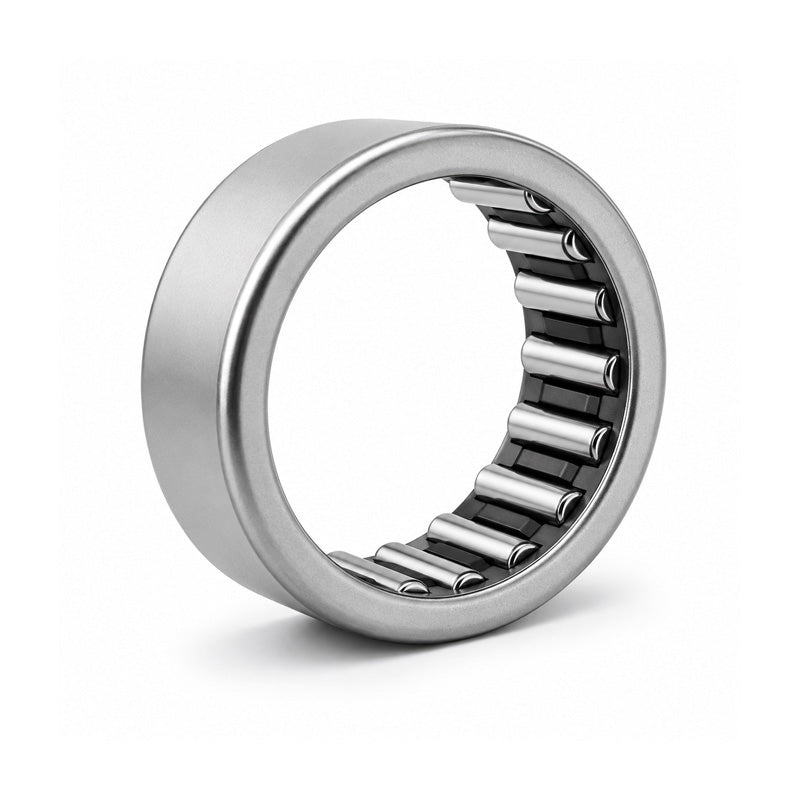

BA1916ZOH Imperial Needle Roller Bearing 1-3/16x1-1/2x1 inch
BA1916ZOH Imperial Needle Roller Bearing 1-3/16x1-1/2x1 inch
Regular price
$7.70
ex VAT
Regular price
Sale price
$7.70
ex VAT
In stock
Price Break
10+
$6.85
19+
$6.47
29+
$6.39
39+
$6.31
49+
$6.24
74+
$6.16
99+
$5.78
199+
$5.70
249+
$5.62
499+
$5.54
999+
$5.39
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-3/16 inch |
|---|---|
| D | 1-1/2 inch |
| C | 1 inch |
| Dynamic Load Cor | 25800 N |
| Static Load Cr | 45300 N |
| Weight | 0.052 kg |
