SKU: BA.2212.ZOH

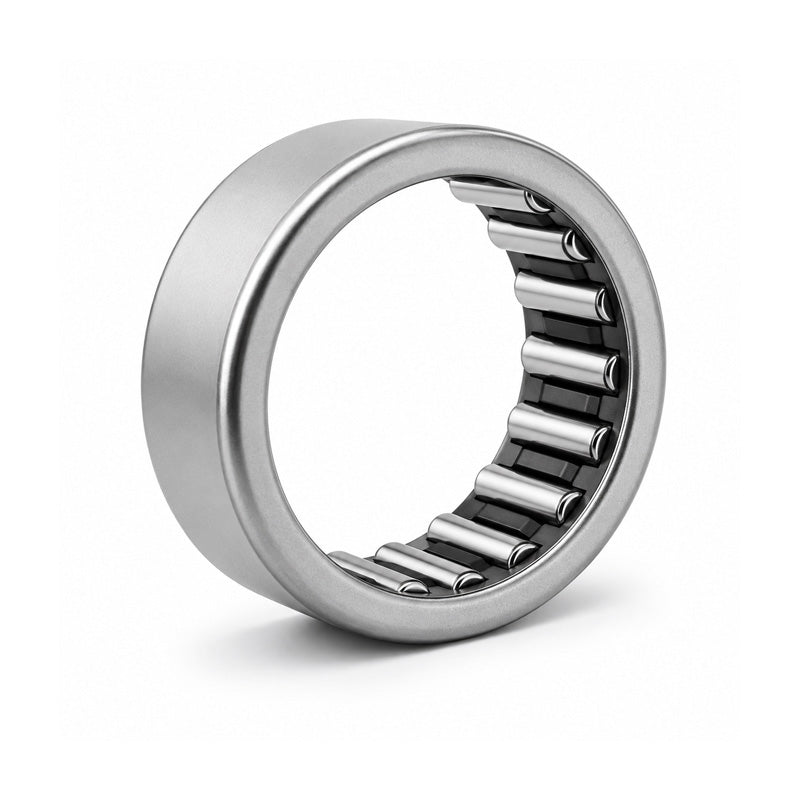

BA2212ZOH Imperial Needle Roller Bearing 1-3/8x1-5/8x3/4 inch
BA2212ZOH Imperial Needle Roller Bearing 1-3/8x1-5/8x3/4 inch
Regular price
$7.11
ex VAT
Regular price
Sale price
$7.11
ex VAT
In stock
Price Break
10+
$6.33
19+
$5.97
29+
$5.90
39+
$5.83
49+
$5.76
74+
$5.69
99+
$5.33
199+
$5.26
249+
$5.19
499+
$5.12
999+
$4.98
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-3/8 inch |
|---|---|
| D | 1-5/8 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 16900 N |
| Static Load Cr | 33500 N |
| Weight | 0.0355 kg |
