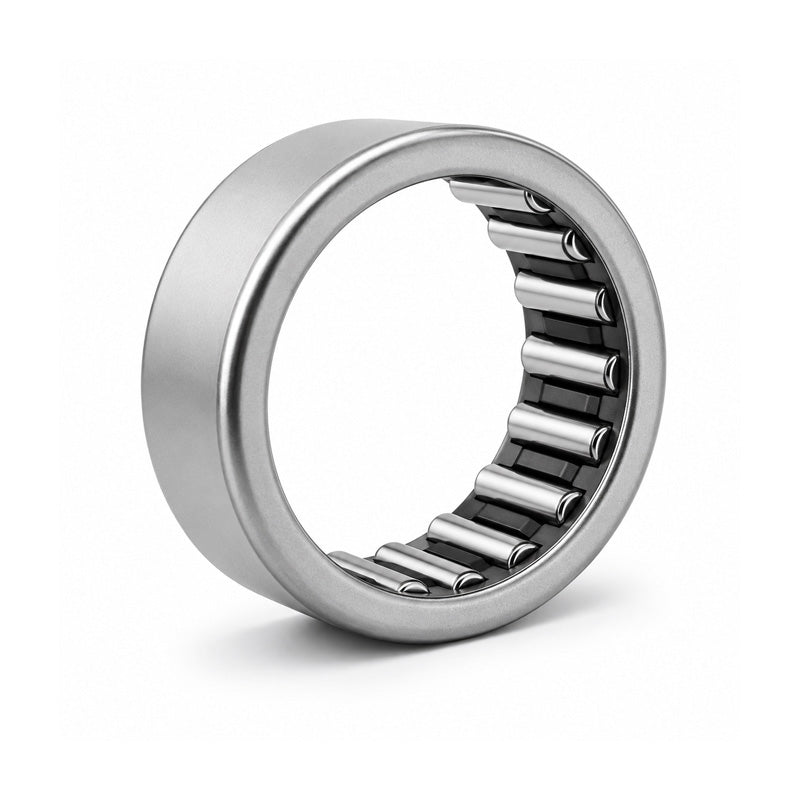

BA3010ZOH Imperial Needle Roller Bearing 1-7/8x2-1/4x5/8 inch
BA3010ZOH Imperial Needle Roller Bearing 1-7/8x2-1/4x5/8 inch
Regular price
$18.28
ex VAT
Regular price
Sale price
$18.28
ex VAT
In stock
Price Break
10+
$16.27
19+
$15.36
29+
$15.17
39+
$14.99
49+
$14.81
74+
$14.62
99+
$13.71
199+
$13.53
249+
$13.34
499+
$13.16
999+
$12.80
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 1-7/8 inch |
|---|---|
| D | 2-1/4 inch |
| C | 5/8 inch |
| Dynamic Load Cor | 20300 N |
| Static Load Cr | 34500 N |
| Weight | 0.06 kg |
