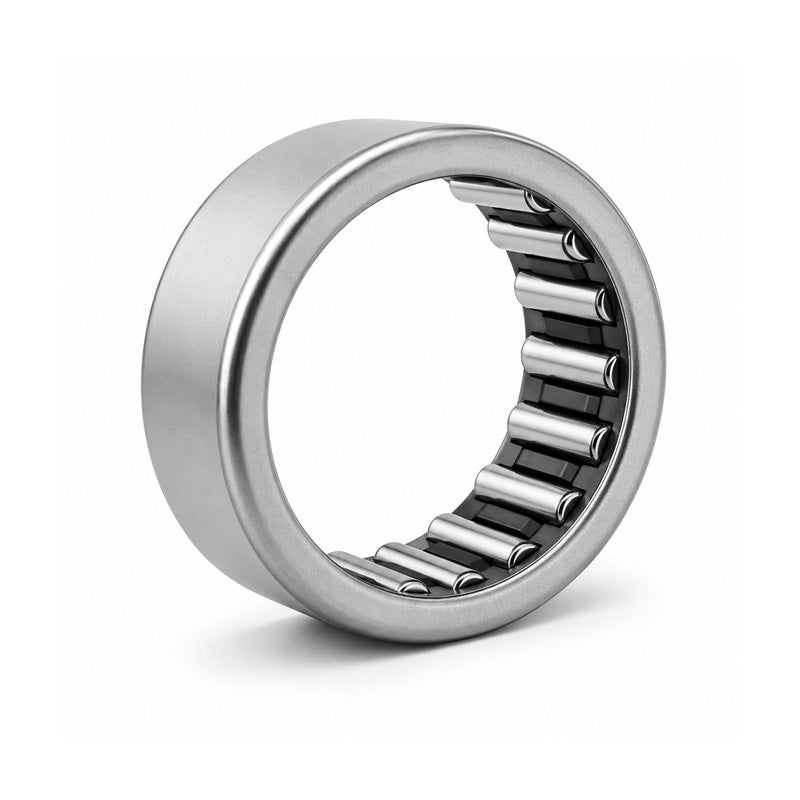

BA3224ZOH Imperial Needle Roller Bearing 2x2-3/8x1-1/2 inch
BA3224ZOH Imperial Needle Roller Bearing 2x2-3/8x1-1/2 inch
Regular price
$16.37
ex VAT
Regular price
Sale price
$16.37
ex VAT
In stock
Price Break
10+
$14.57
19+
$13.75
29+
$13.59
39+
$13.42
49+
$13.26
74+
$13.10
99+
$12.28
199+
$12.11
249+
$11.95
499+
$11.79
999+
$11.46
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Fw | 2 inch |
|---|---|
| D | 2-3/8 inch |
| C | 1-1/2 inch |
| Dynamic Load Cor | 55500 N |
| Static Load Cr | 128000 N |
| Weight | 0.155 kg |
