SKU: BA.328.ZOH

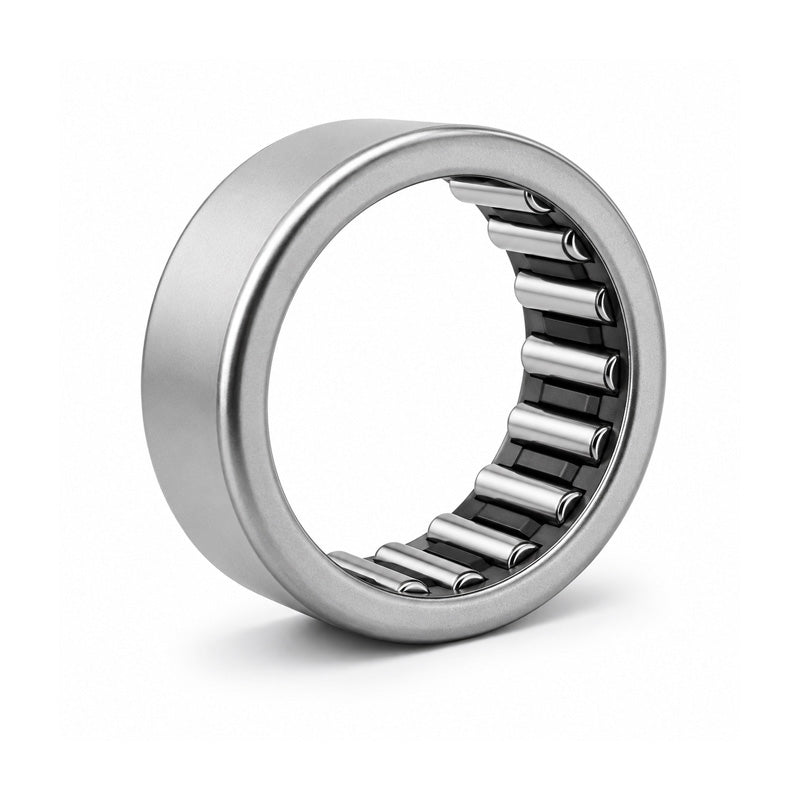

BA328ZOH Imperial Needle Roller Bearing 2x2-3/8x1/2 inch
BA328ZOH Imperial Needle Roller Bearing 2x2-3/8x1/2 inch
Regular price
$12.95
ex VAT
Regular price
Sale price
$12.95
ex VAT
In stock
Price Break
10+
$11.53
19+
$10.88
29+
$10.75
39+
$10.62
49+
$10.49
74+
$10.36
99+
$9.71
199+
$9.58
249+
$9.45
499+
$9.32
999+
$9.07
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 2 inch |
|---|---|
| D | 2-3/8 inch |
| C | 1/2 inch |
| Dynamic Load Cor | 15400 N |
| Static Load Cr | 24700 N |
| Weight | 0.05 kg |
