SKU: BA.3416.ZOH

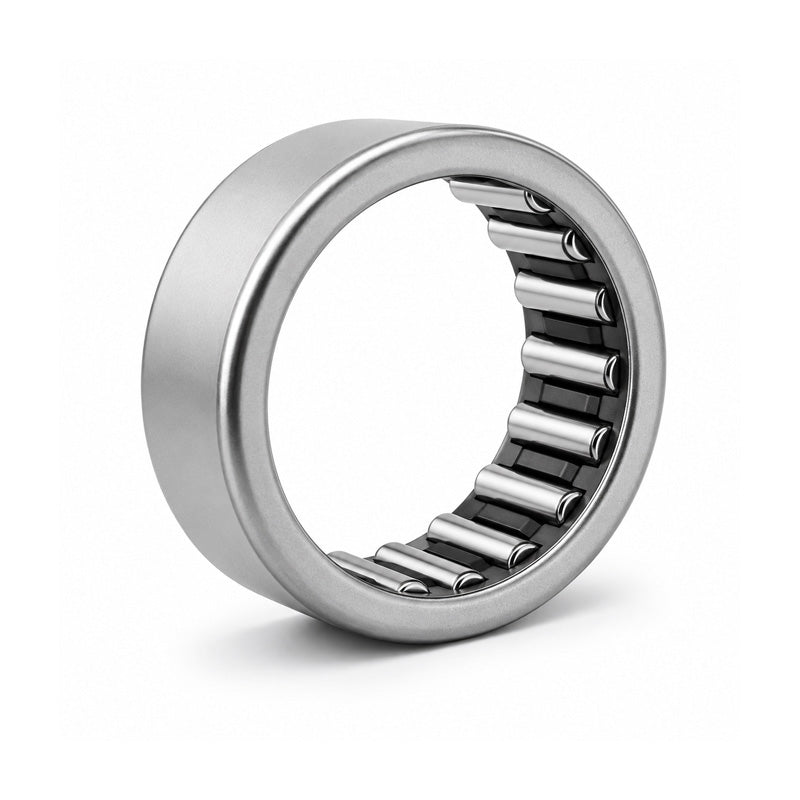

BA3416ZOH Imperial Needle Roller Bearing 2-1/8x2-1/2x1 inch
BA3416ZOH Imperial Needle Roller Bearing 2-1/8x2-1/2x1 inch
Regular price
$16.90
ex VAT
Regular price
Sale price
$16.90
ex VAT
In stock
Price Break
10+
$15.04
19+
$14.20
29+
$14.03
39+
$13.86
49+
$13.69
74+
$13.52
99+
$12.68
199+
$12.51
249+
$12.34
499+
$12.17
999+
$11.83
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 2-1/8 inch |
|---|---|
| D | 2-1/2 inch |
| C | 1 inch |
| Dynamic Load Cor | 38700 N |
| Static Load Cr | 82500 N |
| Weight | 0.109 kg |
