SKU: BAM.2816

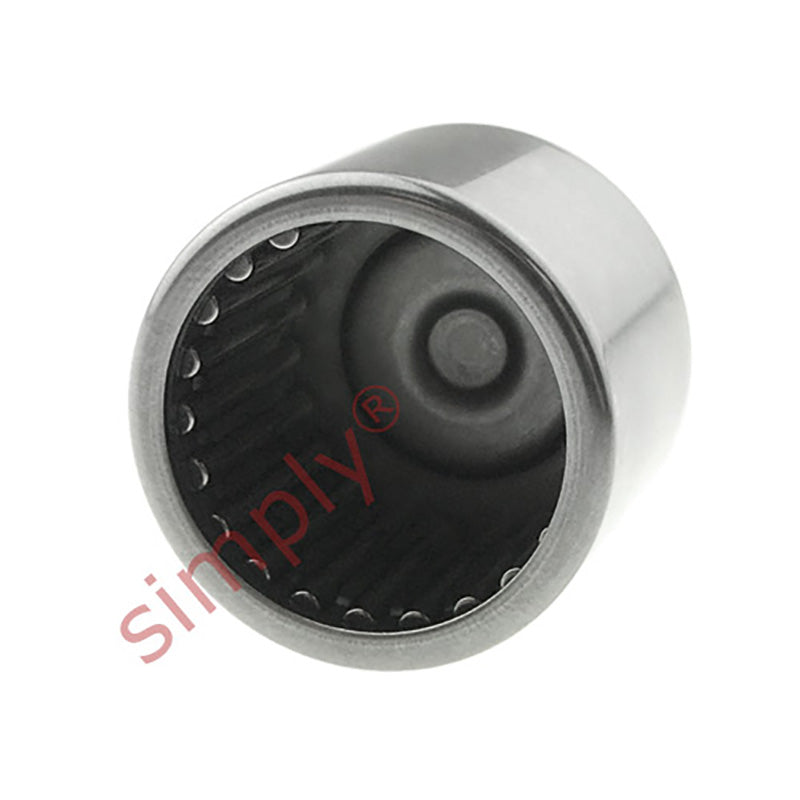

BAM2816 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x1 inch
BAM2816 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x1 inch
Regular price
$15.80
ex VAT
Regular price
Sale price
$15.80
ex VAT
Equivalent to: MJ28161 BCE2816
In stock
Price Break
10+
$14.06
19+
$13.27
29+
$13.11
39+
$12.96
49+
$12.80
74+
$12.64
99+
$11.85
199+
$11.69
249+
$11.53
499+
$11.38
999+
$11.06
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ28161 BCE2816
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-3/4 inch |
|---|---|
| D | 2-1/8 inch |
| C | 1 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 34800 N |
| Static Load C0 | 67400 N |
| Weight | 103 g |
