SKU: BB-515A-B180-HH

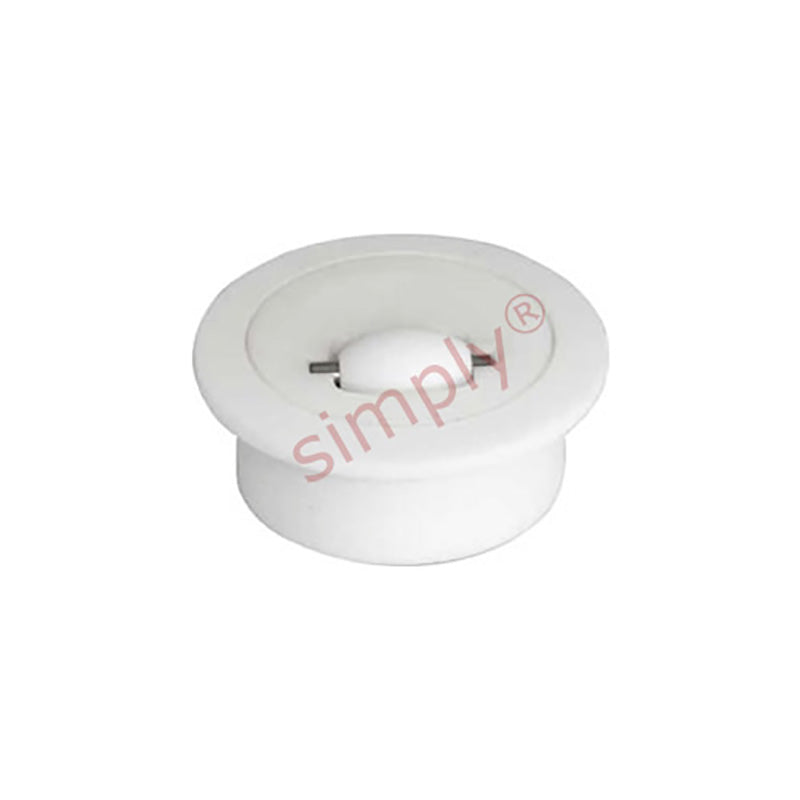

xiros xirodur BB515AB180HH Polymer Ball Caster with xirodur B180 Polymer Roller
In stock
Price Break
Couldn't load pickup availability
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Transfer Unit: This polymer ball transfer unit is made of xirodur® B180 for the lubricant-free transport of sensitive product. These new axial polymer ball casters can carry higher loads compared to the standard xirodur® polymer ball casters. This is due to the newly developed spherical polymer ball caster that can be replaced. By combining an axial bearing and spherical polymer ball caster, a faster change of direction can be performed at higher loads without scratching or leaving dents on the conveyed product. |
- Brand / Quality:
- Igus - High Quality
Technical
| d1 | 24mm |
|---|---|
| d2 | 30mm |
| h1 | 14mm |
| h2 | 5mm |
| Load capacity axial | 150 N |
| Ball material | Polymer Roller |
