SKU: BB-RT-01-100-ES

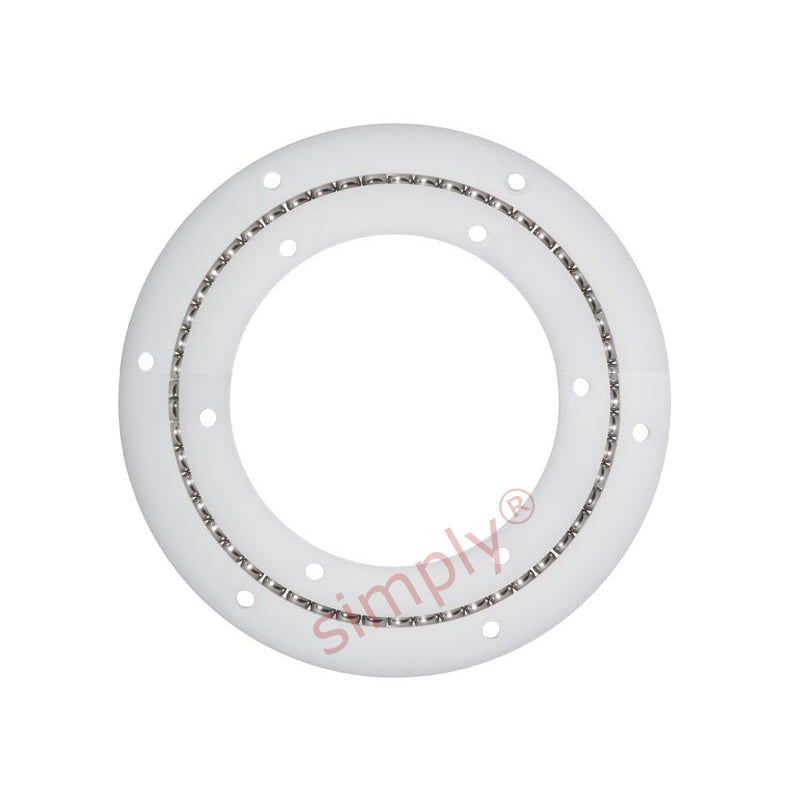

xiros xirodur BBRT01100ES Slewing Ring Bearing with Stainless Steel Balls 100x160x20mm
xiros xirodur BBRT01100ES Slewing Ring Bearing with Stainless Steel Balls 100x160x20mm
Regular price
$454.10
ex VAT
Regular price
Sale price
$454.10
ex VAT
In stock
Price Break
10+
$404.15
19+
$381.44
29+
$376.90
39+
$372.36
49+
$367.82
74+
$363.28
99+
$340.58
199+
$336.03
249+
$331.49
499+
$326.95
999+
$317.87
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C. Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 160mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| D | 160mm |
|---|---|
| D1 | 150mm |
| d | 100mm |
| d1 | 110mm |
| H | 20mm |
| h | 5mm |
| T | 60 degrees |
| K1 | 5.2mm |
| K2 | 5.2mm |
| Static load capacity | 1250 N |
| Dynamic load capacity | 250 N |
| Max speed | 1500 rpm |
| Race | B180 |
| Ball material | Stainless Steel |
