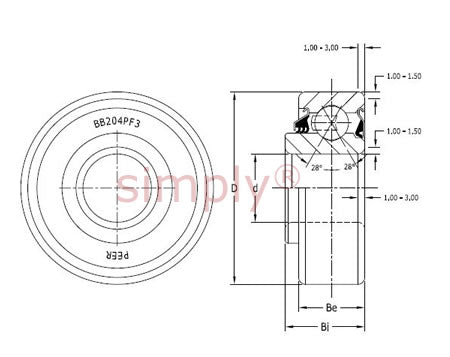

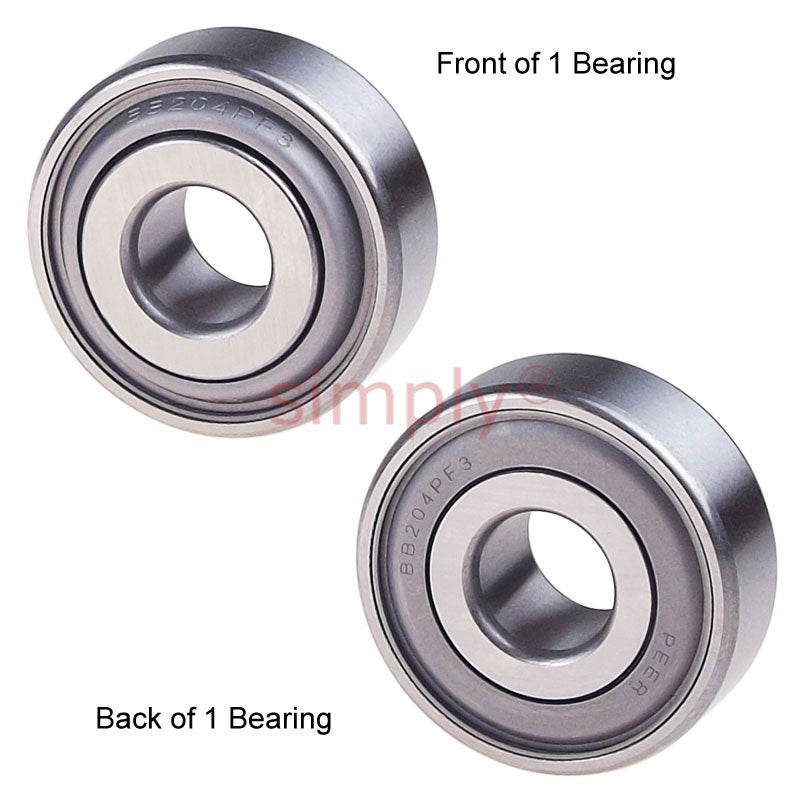

PEER BB204PF3 Round Bore Disc Opener 0.64x1.5748x1.737 inch

Disc Opener
Application conditions:

• Single disc or double disc arrangements are used to open the furrow
• Bearings are pressed into the housing which is riveted or screwed to the disc. The disc assembly is bolted to the machine frame
• High loads are encountered in no-till farming and due to angle of pull
• Rigid assembly is required for a precise disc mounting which creates a consistent furrow
• Dusty and sometimes moist environment

• HUB assembly is available for ease of mounting
• Reduced labour cost and eliminate damage due to incorrect assembly

• Optimized internal geometry
• High load capacity
• High contamination feature package with exclusive sealing system

• Rigid disc
• Minimized operating internal clearance

Brand / Quality:

PEER - High Quality

Inside Diameter:

16.05mm = 0.632 inch

Outside Diameter:

45.22mm = 1.78 inch

Width:

18.66mm = 0.735 inch
