SKU: BHA.1620.ZOH

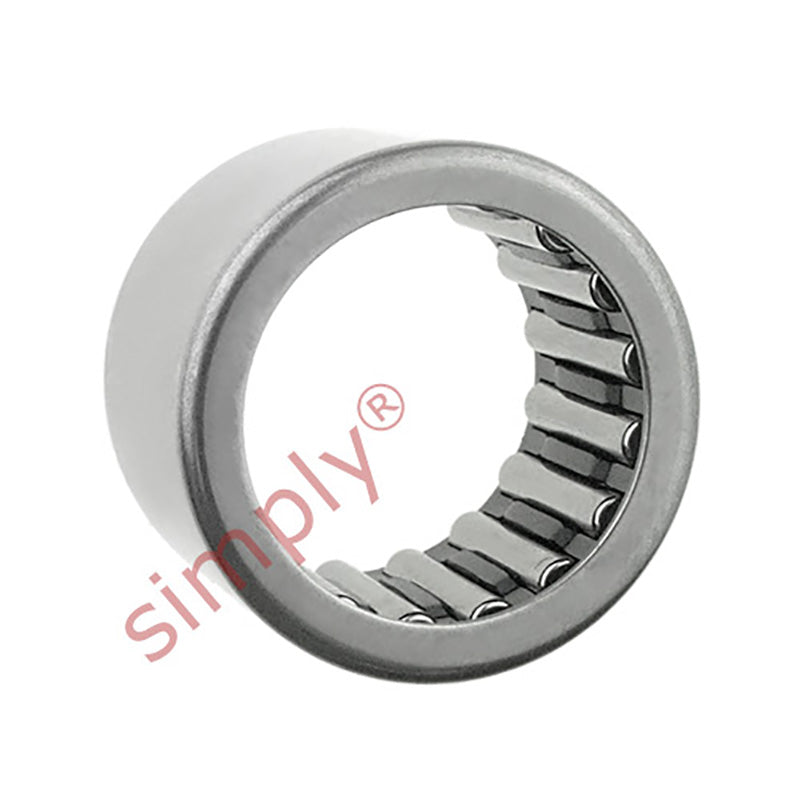

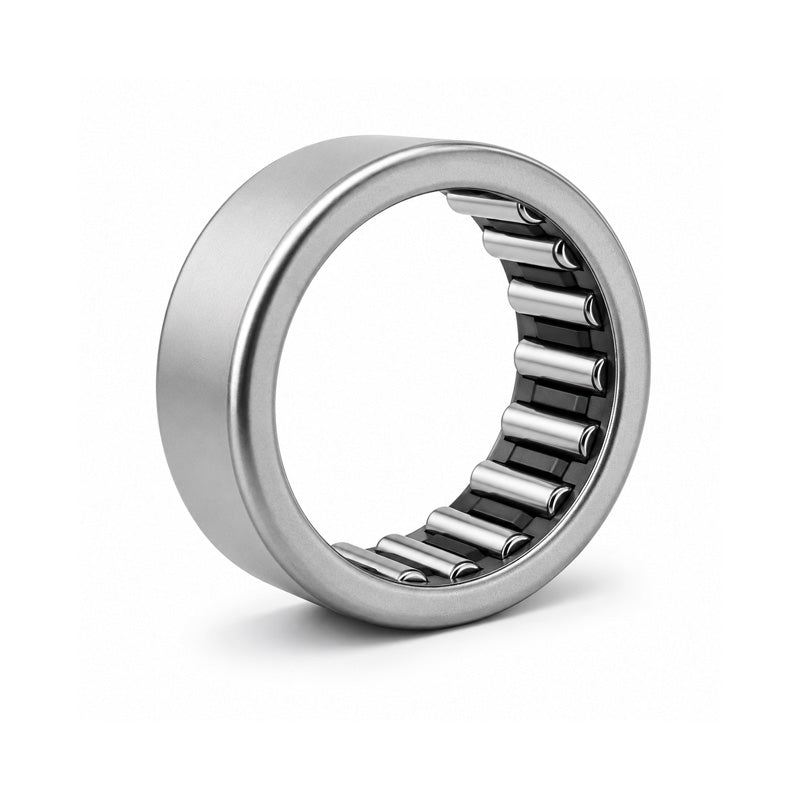

BHA1620ZOH Needle Roller Bearing 1x1-5/16x1-1/4 inch
BHA1620ZOH Needle Roller Bearing 1x1-5/16x1-1/4 inch
Regular price
$7.54
ex VAT
Regular price
Sale price
$7.54
ex VAT
In stock
Price Break
10+
$6.71
19+
$6.33
29+
$6.26
39+
$6.18
49+
$6.11
74+
$6.03
99+
$5.66
199+
$5.58
249+
$5.50
499+
$5.43
999+
$5.28
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1 inch |
|---|---|
| D | 1-5/16 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 33200 N |
| Static Load Cr | 59600 N |
| Weight | 0.0565 kg |
