SKU: BHA.1812.ZOH

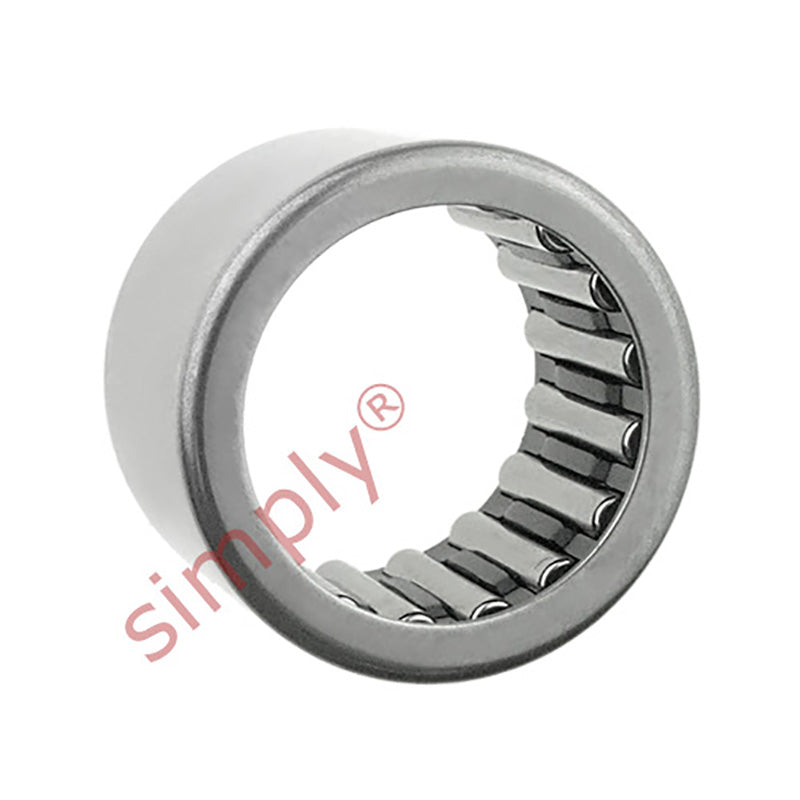

BHA1812ZOH Needle Roller Bearing 1-1/8x1-1/2x3/4 inch
BHA1812ZOH Needle Roller Bearing 1-1/8x1-1/2x3/4 inch
Regular price
$7.11
ex VAT
Regular price
Sale price
$7.11
ex VAT
Equivalent to: JH1812 SCH1812
In stock
Price Break
10+
$6.33
19+
$5.97
29+
$5.90
39+
$5.83
49+
$5.76
74+
$5.69
99+
$5.33
199+
$5.26
249+
$5.19
499+
$5.12
999+
$4.98
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1812 SCH1812
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 38.10mm = 1.5 (1-1/2) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-1/2 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 22500 N |
| Static Load Cr | 32200 N |
| Weight | 0.045 kg |
