SKU: BHA.1818.ZOH

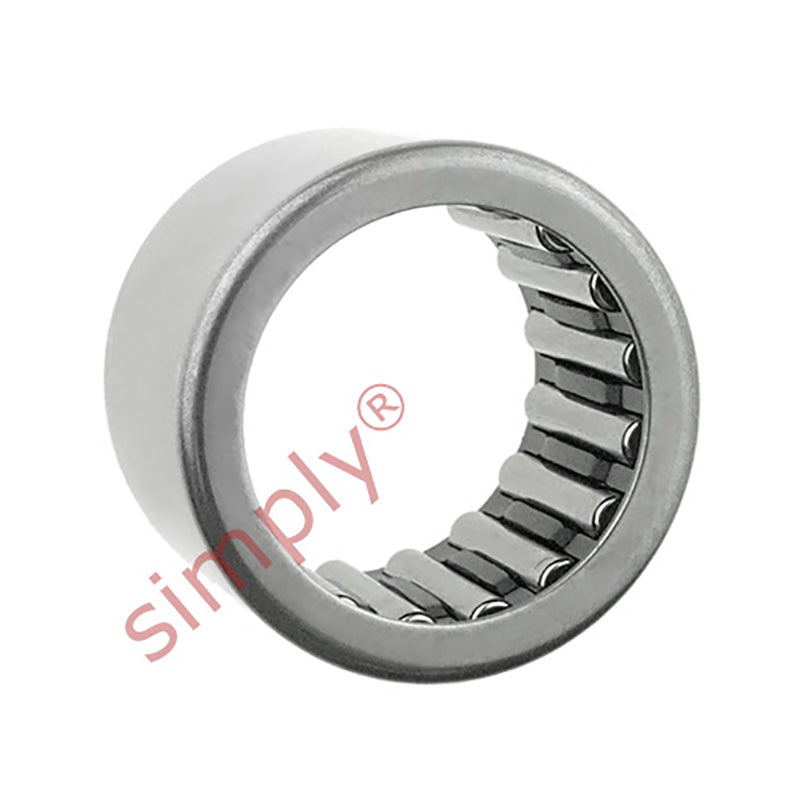

BHA1818ZOH Needle Roller Bearing 1-1/8x1-1/2x1-1/8 inch
BHA1818ZOH Needle Roller Bearing 1-1/8x1-1/2x1-1/8 inch
Regular price
$10.43
ex VAT
Regular price
Sale price
$10.43
ex VAT
Equivalent to: JH1818 SCH1818
In stock
Price Break
10+
$9.28
19+
$8.76
29+
$8.66
39+
$8.55
49+
$8.45
74+
$8.34
99+
$7.82
199+
$7.72
249+
$7.61
499+
$7.51
999+
$7.30
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1818 SCH1818
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 38.10mm = 1.5 (1-1/2) inch
- Width:
- 28.58mm = 1.125 (1-1/8) inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-1/2 inch |
| C | 1-1/8 inch |
| Dynamic Load Cor | 34900 N |
| Static Load Cr | 56600 N |
| Weight | 0.0675 kg |
