SKU: BHAM.1412

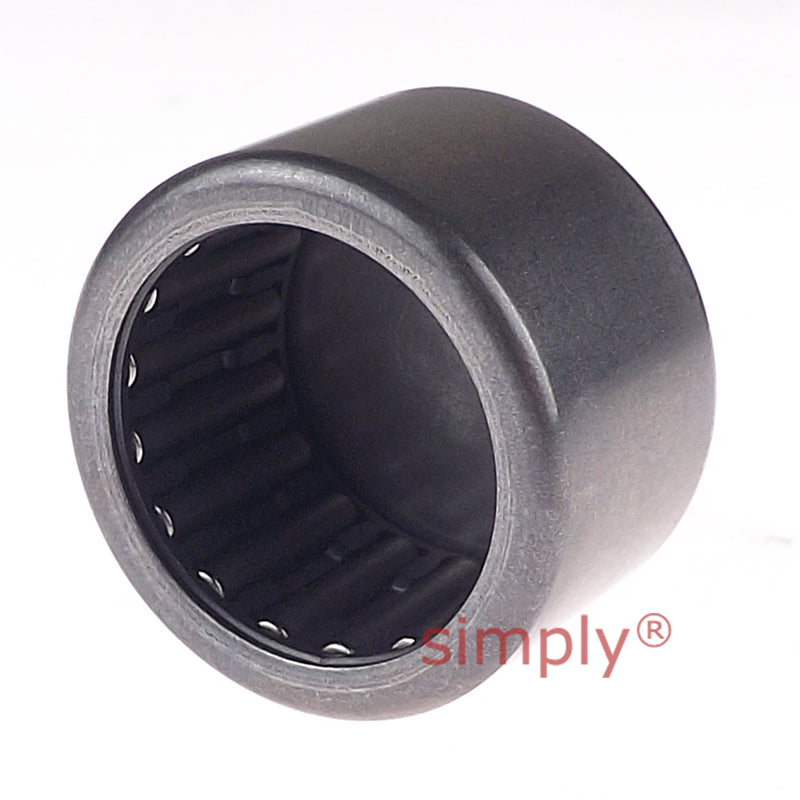

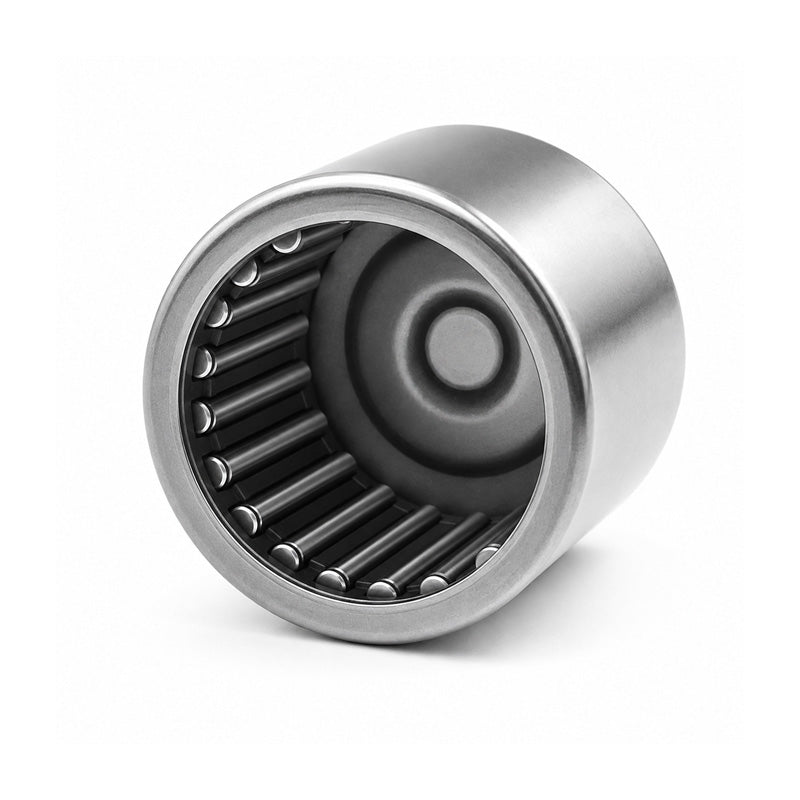

BHAM1412 Needle Roller Bearing 7/8x1-3/16x3/4 inch
BHAM1412 Needle Roller Bearing 7/8x1-3/16x3/4 inch
Regular price
$12.45
ex VAT
Regular price
Sale price
$12.45
ex VAT
Equivalent to: MJH14121 BCH1412
In stock
Price Break
10+
$11.08
19+
$10.46
29+
$10.33
39+
$10.21
49+
$10.08
74+
$9.96
99+
$9.34
199+
$9.21
249+
$9.09
499+
$8.96
999+
$8.72
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH14121 BCH1412
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 7/8 inch |
|---|---|
| D | 1-3/16 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 18000 N |
| Static Load Cr | 26100 N |
| Weight | 0.0325 kg |
