SKU: BHAM.78

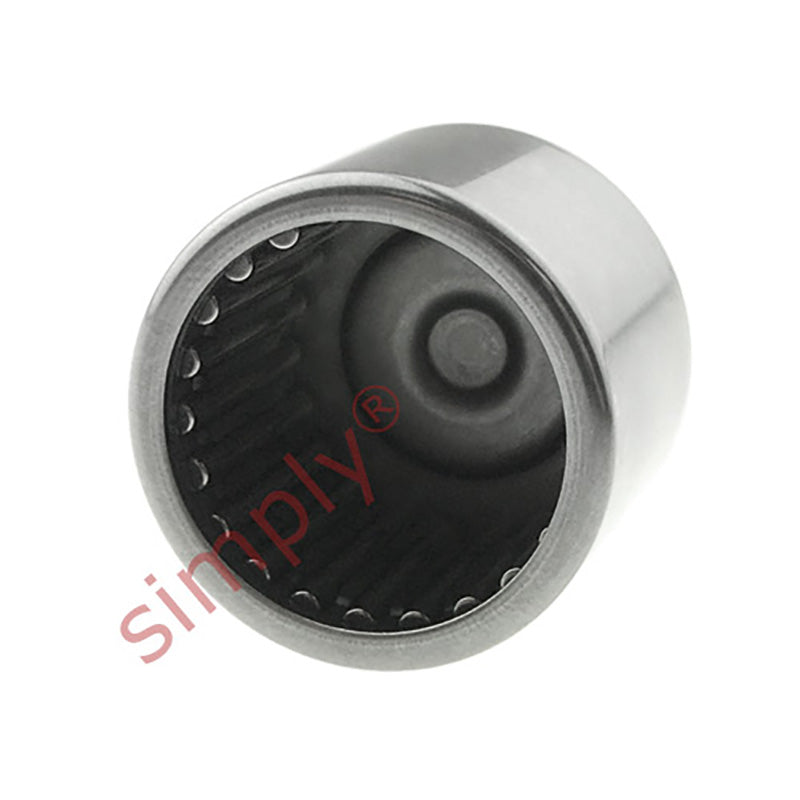

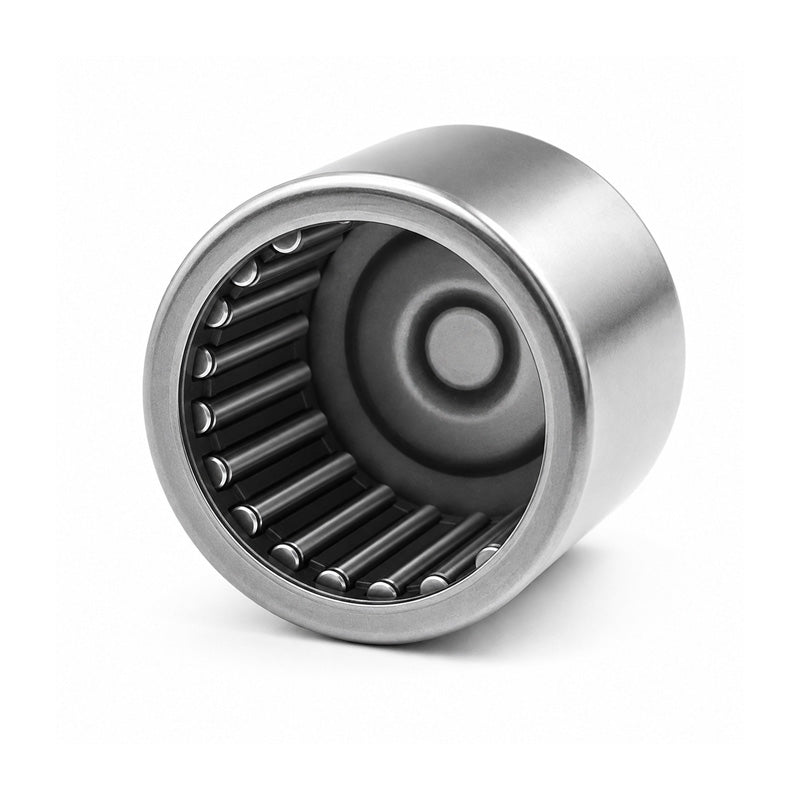

BHAM78 Needle Roller Bearing 7/16x11/16x1/2 inch
BHAM78 Needle Roller Bearing 7/16x11/16x1/2 inch
Regular price
$6.92
ex VAT
Regular price
Sale price
$6.92
ex VAT
Equivalent to: MJH781 BCH78
In stock
Price Break
10+
$6.16
19+
$5.81
29+
$5.74
39+
$5.67
49+
$5.61
74+
$5.54
99+
$5.19
199+
$5.12
249+
$5.05
499+
$4.98
999+
$4.84
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH781 BCH78
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 11.11mm = 0.437 (7/16) inch
- Outside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 7/16 inch |
|---|---|
| D | 11/16 inch |
| C | 1/2 inch |
| Dynamic Load Cor | 5680 N |
| Static Load Cr | 5970 N |
| Weight | 0.01 kg |
