SKU: BR.263516

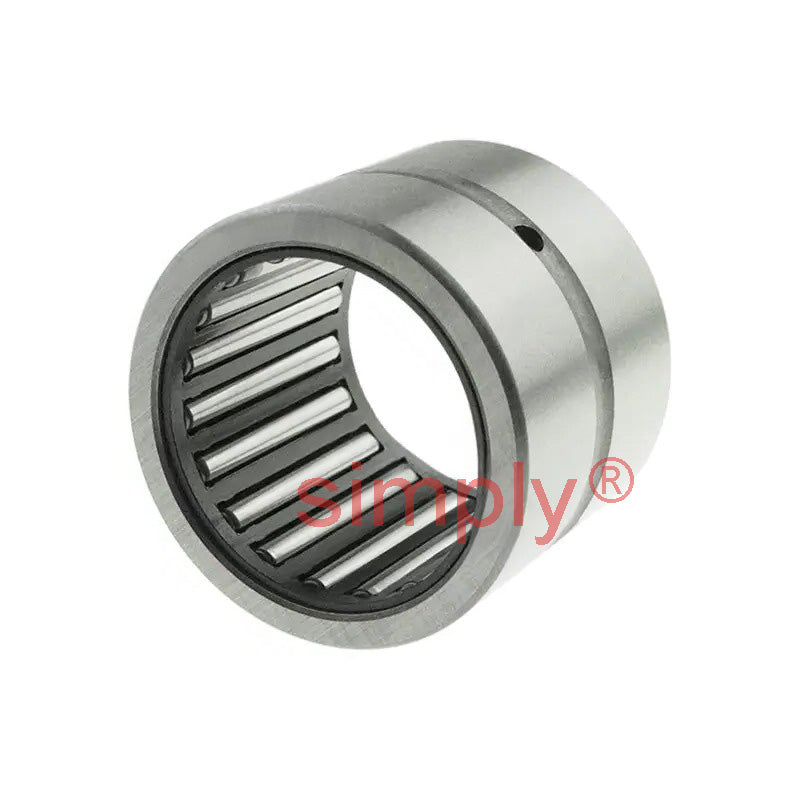

BR263516 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-5/8x2-3/16x1 inch
BR263516 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-5/8x2-3/16x1 inch
Regular price
$25.34
ex VAT
Regular price
Sale price
$25.34
ex VAT
Equivalent to: HJ263516 HJ-263516 MR26N MR-26-N SJ7294 NCS2616
In stock
Price Break
10+
$22.55
19+
$21.29
29+
$21.03
39+
$20.78
49+
$20.53
74+
$20.27
99+
$19.01
199+
$18.75
249+
$18.50
499+
$18.24
999+
$17.74
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ263516 HJ-263516 MR26N MR-26-N SJ7294 NCS2616
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-5/8 inch |
|---|---|
| D | 2-3/16 inch |
| C | 1 inch |
| Dynamic Load Cor | 44800 N |
| Static Load Cr | 70900 N |
| Weight | 0.158 kg |
