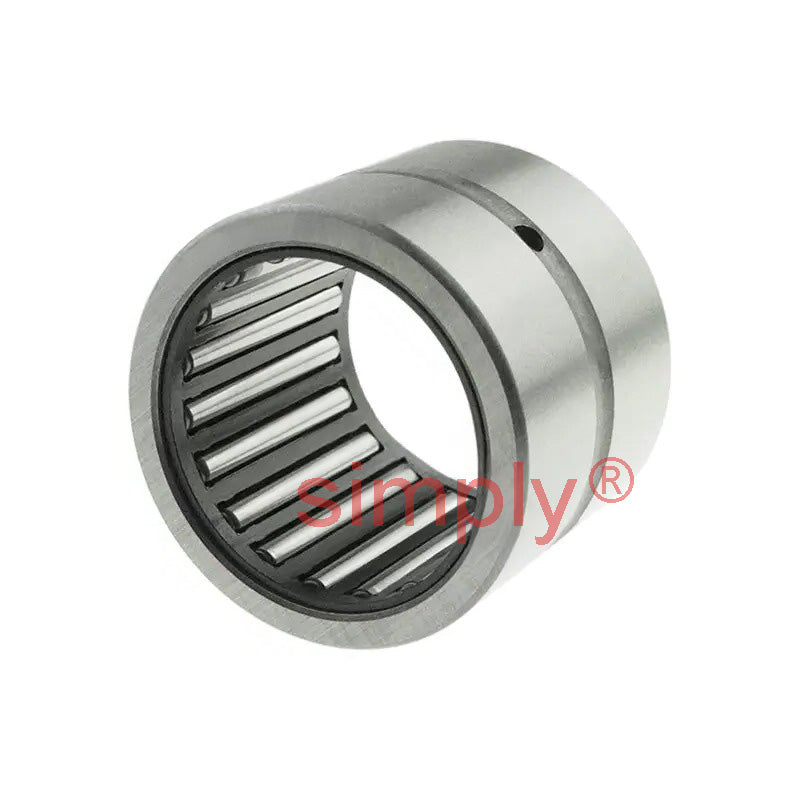

BR567232 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/2x4-1/2x2 inch
BR567232 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/2x4-1/2x2 inch
Regular price
$114.63
ex VAT
Regular price
Sale price
$114.63
ex VAT
Equivalent to: HJ567232 HJ-567232 MR56 MR-56 SJ9608 NCS5632
In stock
Price Break
10+
$102.02
19+
$96.29
29+
$95.14
39+
$94.00
49+
$92.85
74+
$91.70
99+
$85.97
199+
$84.83
249+
$83.68
499+
$82.53
999+
$80.24
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ567232 HJ-567232 MR56 MR-56 SJ9608 NCS5632
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| Fw | 3-1/2 inch |
|---|---|
| D | 4-1/2 inch |
| C | 2 inch |
| Dynamic Load Cor | 162000 N |
| Static Load Cr | 316000 N |
| Weight | 1.22 kg |
