SKU: EXFE218-SNR

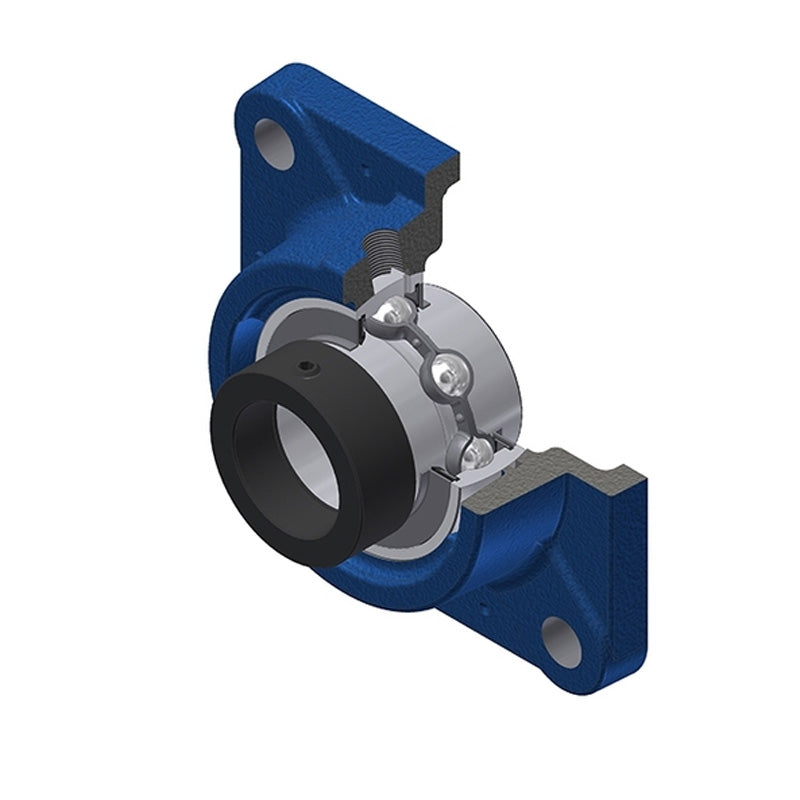

SNR EXFE218 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFE218 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$335.64
ex VAT
Regular price
Sale price
$335.64
ex VAT
In stock
Price Break
10+
$298.72
19+
$281.94
29+
$278.58
39+
$275.22
49+
$271.87
74+
$268.51
99+
$251.73
199+
$248.37
249+
$245.02
499+
$241.66
999+
$234.95
Couldn't load pickup availability
Description
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- EXFE
- Bolt Hole Centres:
- 187mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| A | 45mm |
| A1 | 22mm |
| A2 | 71.8mm |
| B | 55mm |
| B1 | 72.5mm |
| d1 | 120mm |
| e | 23.8mm |
| J | 187mm |
| L | 235mm |
| N | 23mm |
| S | 24.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 10.84 kg |
