SKU: FC20EC-RHP
RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
Regular price
$54.68
ex VAT
Regular price
Sale price
$54.68
ex VAT
In stock
Price Break
10+
$48.67
19+
$45.93
29+
$45.38
39+
$44.84
49+
$44.29
74+
$43.74
99+
$41.01
199+
$40.46
249+
$39.92
499+
$39.37
999+
$38.28
Couldn't load pickup availability
Description
Description
|

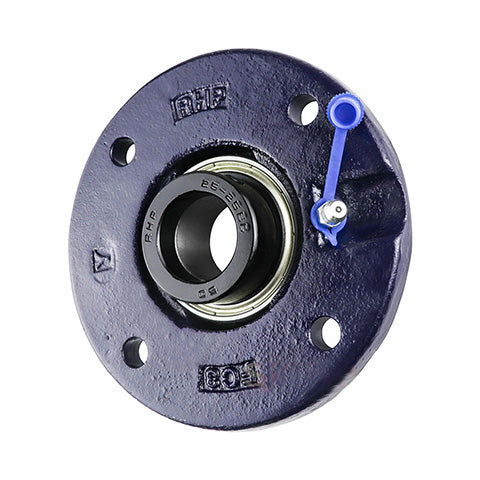

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- FC
- Pitch Circle Diameter:
- 78mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 100mm |
| H | 62mm |
| J | 78mm |
| G | 8mm |
| A | 17mm |
| A2 | 21.45mm |
| A5 | 8mm |
| B2 | 30.92mm |
| s2 | 17.12mm |
| d2 | 33.3mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
