SKU: FL06-PBC

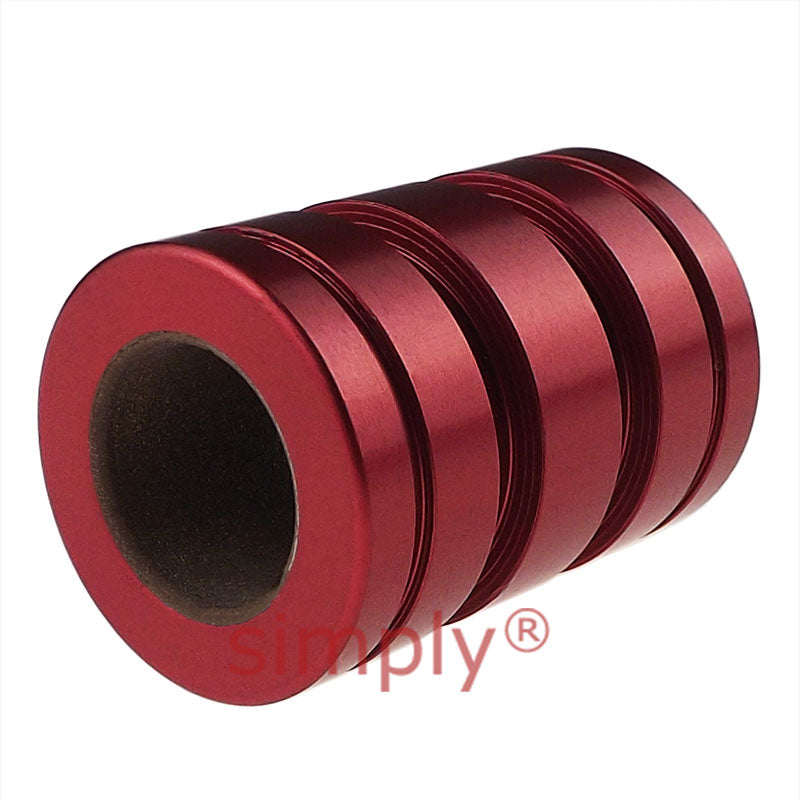

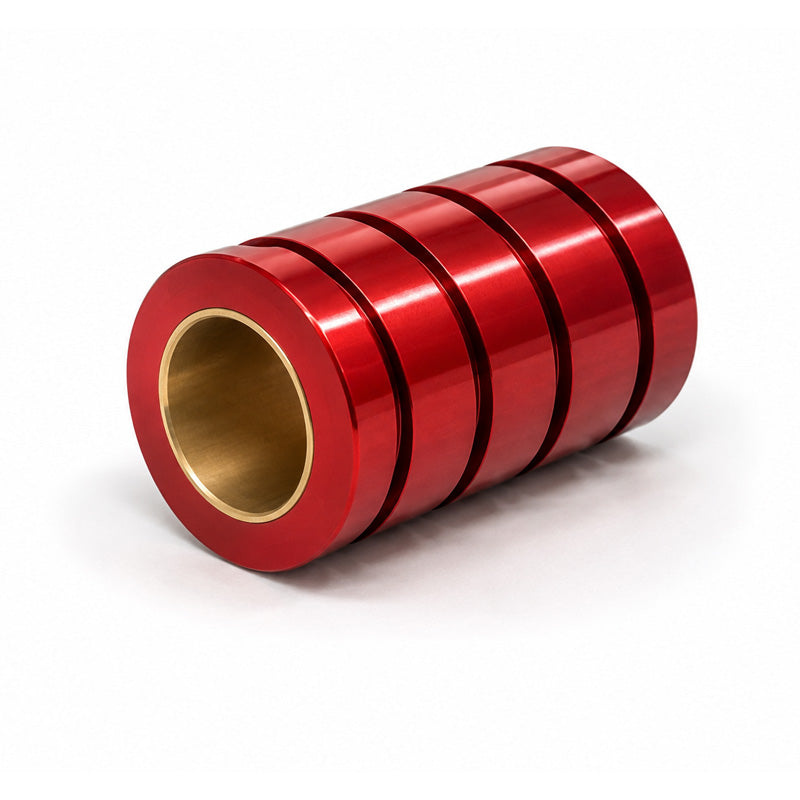

PBC FL 06 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 0.375x0.625x0.875 inch (Allow 2-3 Days)
PBC FL 06 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 0.375x0.625x0.875 inch (Allow 2-3 Days)
Regular price
$47.49
ex VAT
Regular price
Sale price
$47.49
ex VAT
In stock
Price Break
10+
$42.27
19+
$39.89
29+
$39.42
39+
$38.94
49+
$38.47
74+
$37.99
99+
$35.62
199+
$35.14
249+
$34.67
499+
$34.19
999+
$33.24
Couldn't load pickup availability
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Length:
- 22.23mm = 0.875 (7/8) inch
Technical
Technical
| Inside Diameter | 9.53mm = 0.375 (3/8) inch |
|---|---|
| Outside Diameter | 15.88mm = 0.625 (5/8) inch |
| Width | 22.23mm = 0.875 (7/8) inch |
| Nominal Bore Size | 3/8 inch |
| Effective Surface Area (Square Inch) | 0.34kg |
| Max Static Load | 4.53kN |
| Weight | 0.007kg |
