SKU: FLN48-PBC

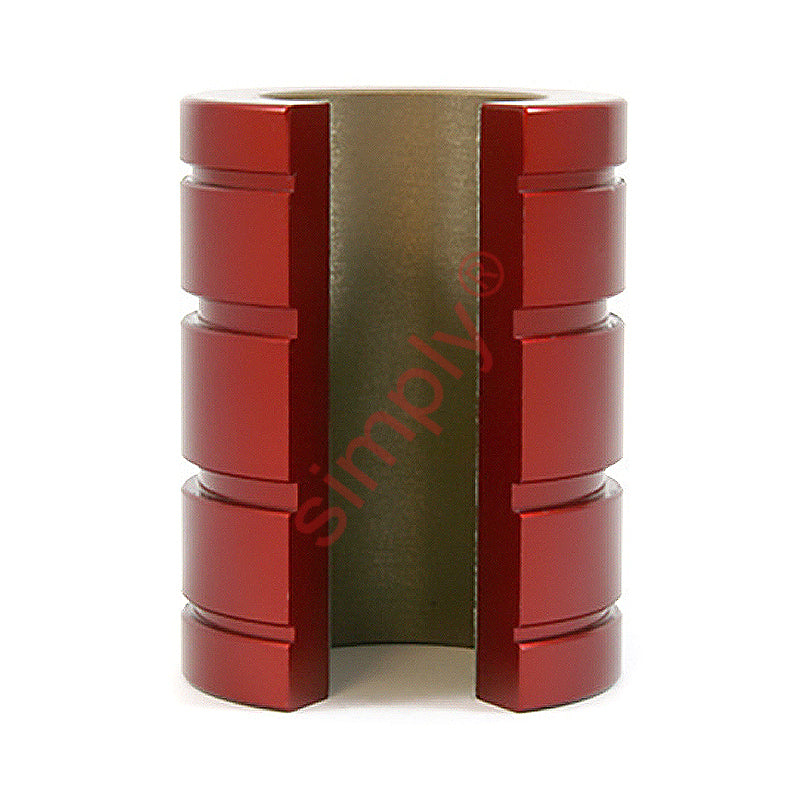

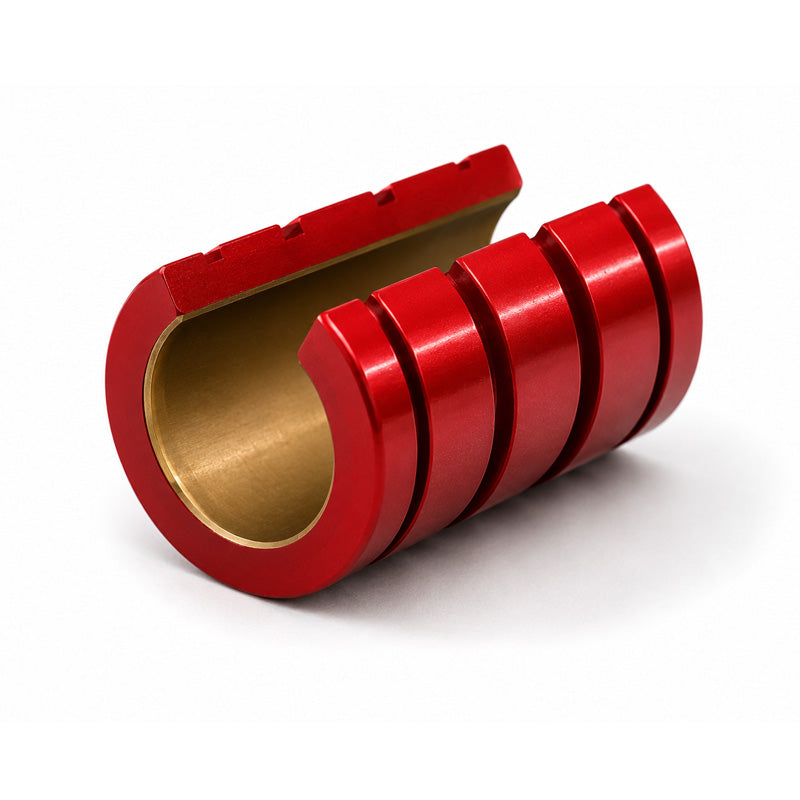

PBC FLN 48 Imperial Open Precision Linear Plain Bearing with Frelon Gold 3x4.5x6 inch (Allow 2-3 Days)
PBC FLN 48 Imperial Open Precision Linear Plain Bearing with Frelon Gold 3x4.5x6 inch (Allow 2-3 Days)
Regular price
$866.22
ex VAT
Regular price
Sale price
$866.22
ex VAT
In stock
Price Break
10+
$770.94
19+
$727.62
29+
$718.96
39+
$710.30
49+
$701.64
74+
$692.98
99+
$649.67
199+
$641.00
249+
$632.34
499+
$623.68
999+
$606.35
Couldn't load pickup availability
Description
Description

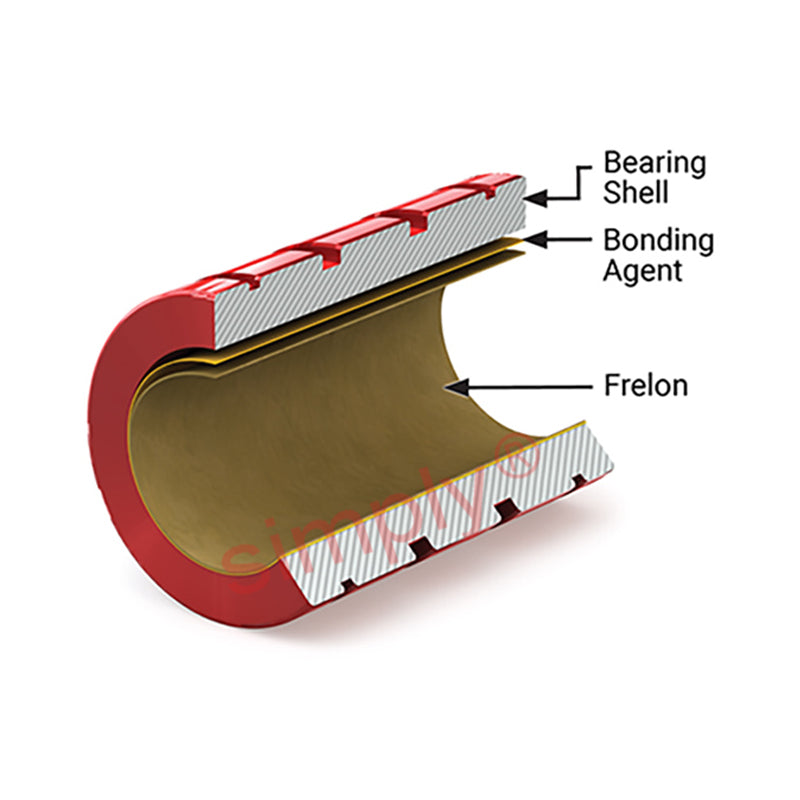

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Length:
- 152.4mm = 6 inch
Technical
Technical
| Inside Diameter (A) | 76.2mm = 3 inch |
|---|---|
| Outside Diameter (B) | 114.3mm = 4.5 (4-1/2) inch |
| Width (C) | 152.4mm = 6 inch |
| Nominal Bore Size | 3 inch |
| Effective Surface Area (Square Inch) | 18.8 inch |
| Max Static Load | 250.67kN |
| Weight | 2.229kg |
