SKU: FY1.1/2TF/VA201-SKF

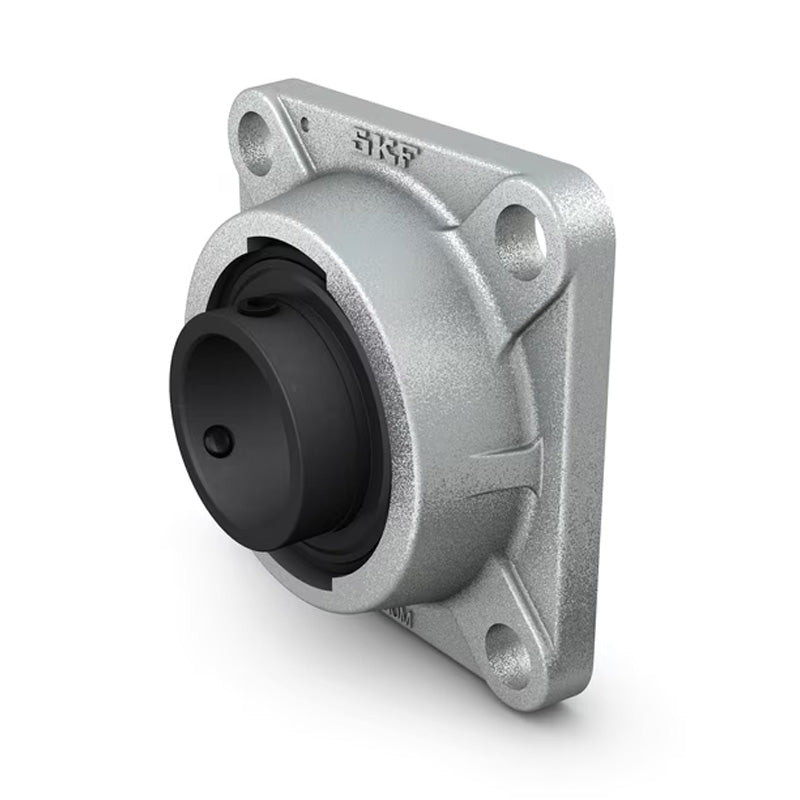

SKF FY1-1/2TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-1/2inch
SKF FY1-1/2TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-1/2inch
Regular price
$336.20
ex VAT
Regular price
Sale price
$336.20
ex VAT
In stock
Price Break
10+
$299.22
19+
$282.41
29+
$279.05
39+
$275.68
49+
$272.32
74+
$268.96
99+
$252.15
199+
$248.79
249+
$245.43
499+
$242.06
999+
$235.34
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 101.5mm |
| L | 130mm |
| N | 14.3mm |
| G | 12mm |
| T | 54.2mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 1.94 kg |
