SKU: FYT1.1/2TF/VA228-SKF

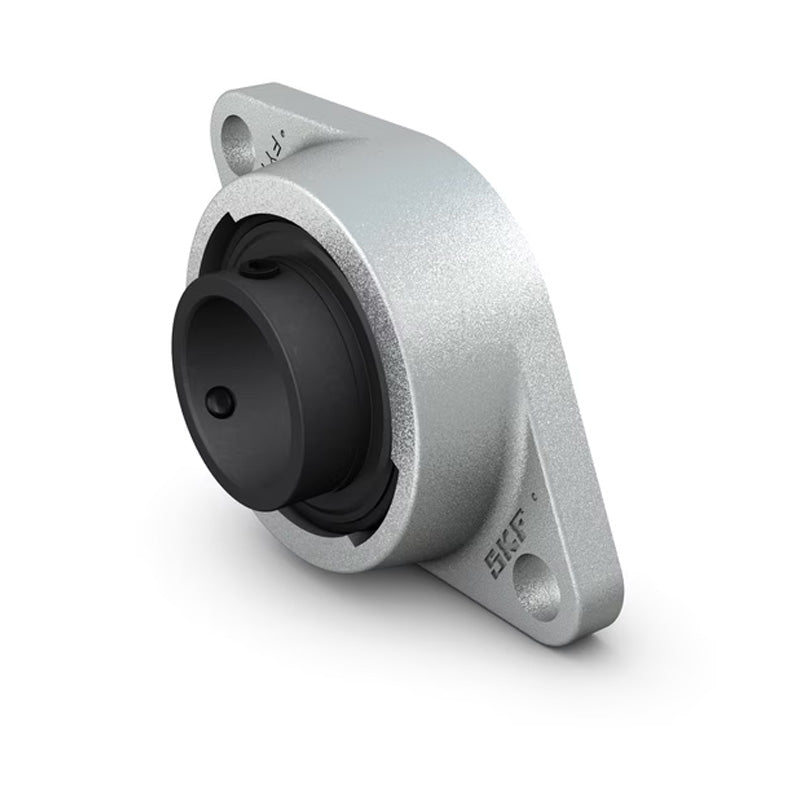

SKF FYT112TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2 inch
SKF FYT112TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2 inch
Regular price
$351.81
ex VAT
Regular price
Sale price
$351.81
ex VAT
In stock
Price Break
10+
$313.11
19+
$295.52
29+
$292.00
39+
$288.48
49+
$284.97
74+
$281.45
99+
$263.86
199+
$260.34
249+
$256.82
499+
$253.30
999+
$246.27
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| H | 171.5mm |
| J | 143.7mm |
| L | 102mm |
| N | 14.3mm |
| G | 12mm |
| T | 54.2mm |
| Static load Co | 19 kN |
| Weight | 1.65 kg |
