SKU: GAC100F-SKF

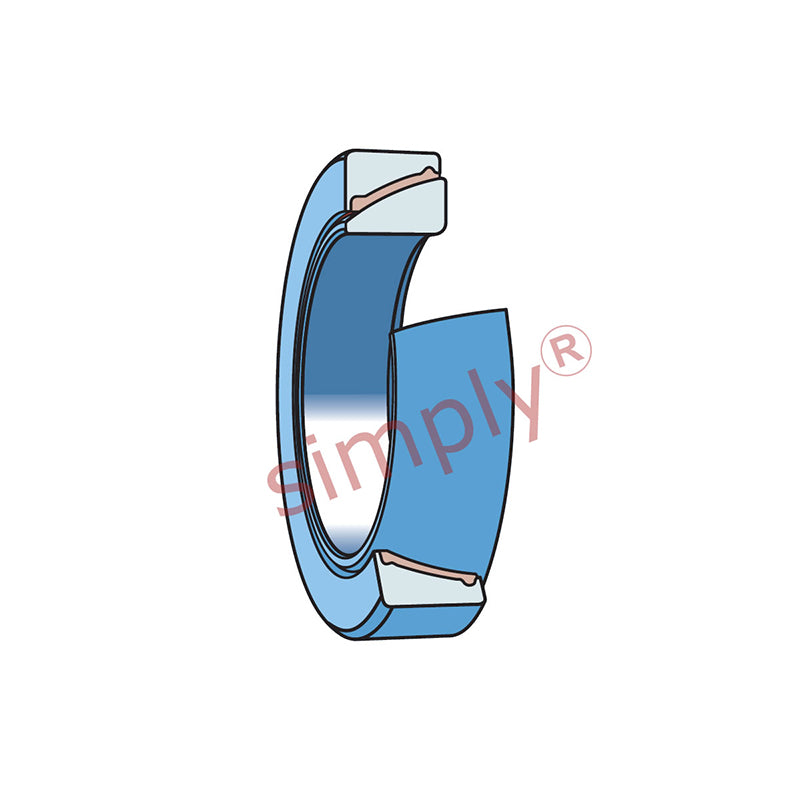

SKF GAC100F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 100x150x32mm
SKF GAC100F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 100x150x32mm
Regular price
$726.47
ex VAT
Regular price
Sale price
$726.47
ex VAT
Equivalent to: GE100SX GAC100T
In stock
Price Break
10+
$646.56
19+
$610.23
29+
$602.97
39+
$595.71
49+
$588.44
74+
$581.18
99+
$544.85
199+
$537.59
249+
$530.32
499+
$523.06
999+
$508.53
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
Equivalent: GE100SX GAC100T
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 32mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| T | 32mm |
| Angle | 2 degrees |
| Dynamic load | 170 kN |
| Static load | 270 kN |
| dk | 141mm |
| B | 32mm |
| C | 31mm |
| r1 min | 2mm |
| r2 min | 0.6mm |
| s | 11.6mm |
| da max | 112mm |
| db max | 128mm |
| Da min | 120mm |
| Db min | 141mm |
| ra max | 2mm |
| Weight | 2.35 kg |
